Colibri Technics DTF ULTIMA A3 — DTF printing system

Name: Colibri Technics DTF ULTIMA A3 — DTF printing system
Brand: Colibri Technics
SKU: DTF ULTIMA A3

300 mm-wide DTF system for printing film transfers for textile decoration. Two Epson F1080 printheads, colour and white printing, plus a powder shaker and heater.

Enquiry

Manufacturer code: DTF ULTIMA A3DTF ULTIMA A3On request

Overview

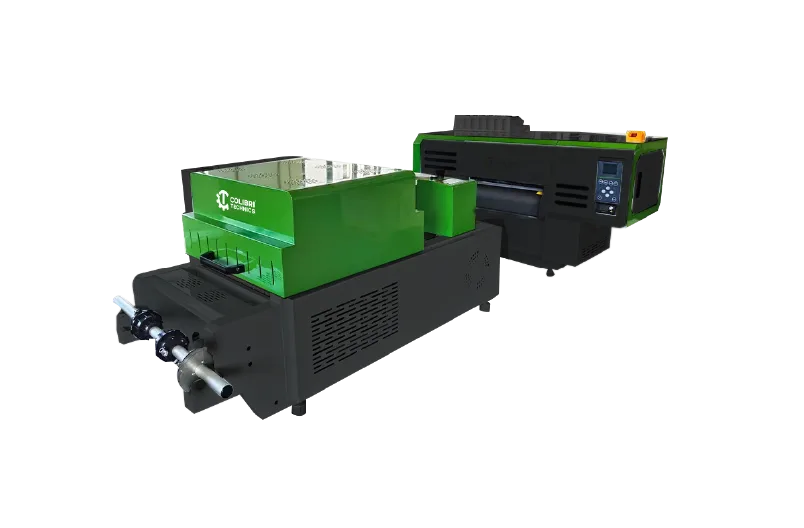

Colibri Technics DTF ULTIMA A3 prints images onto film for subsequent heat transfer to suitable textiles. The system combines a printer with a powder shaker and heater; it does not print directly onto garments. Maximum print width is 300 mm, with a media width of 330 mm. Two Epson F1080 printheads use CMYK, light cyan, light magenta and white. The listed maximum resolution is 1440 dpi. Manufacturer-listed output is 3.3 m²/h in 6-pass mode and 2.8 m²/h in 8-pass mode. These are separate mode figures, not a promise of maximum speed at maximum resolution. Include transfer size, planned volume and textile type in your enquiry; select transfer conditions according to the film, powder and textile requirements.

Specifications

printing width (mm): 300
print heads: 2 × Epson F1080
ink colours: CMYK, light cyan, light magenta and white
productivity modes (m²/h): 6-pass: 3.3; 8-pass: 2.8

Media

media width (mm): 330

Printing

resolution (dpi): 1440 (listed resolution; confirm the required print mode)

Workflow

integrated workflow: Powder application and heating in a separate system unit

What it suits

Film-based DTF transfers for textile decoration.
Two Epson F1080 printheads.
300 mm print width; 330 mm media width.
Powder application and heating in a separate system unit.

Documents

Datasheet

Related products

The whole category

Manufacturer

Colibri Technics

Colibri Technics is the engineering division of Colibri Digital, developing digital printing and finishing equipment. Its range includes printers, laminators, cutting equipment, laser systems and heat-transfer presses for sign and textile production. Choose equipment around the specific production step: printing, laminating, cutting or heat transfer. Then compare the selected model's working format, material compatibility and role in the overall workflow. This helps distinguish the machine needed for a particular task from additional finishing equipment.
