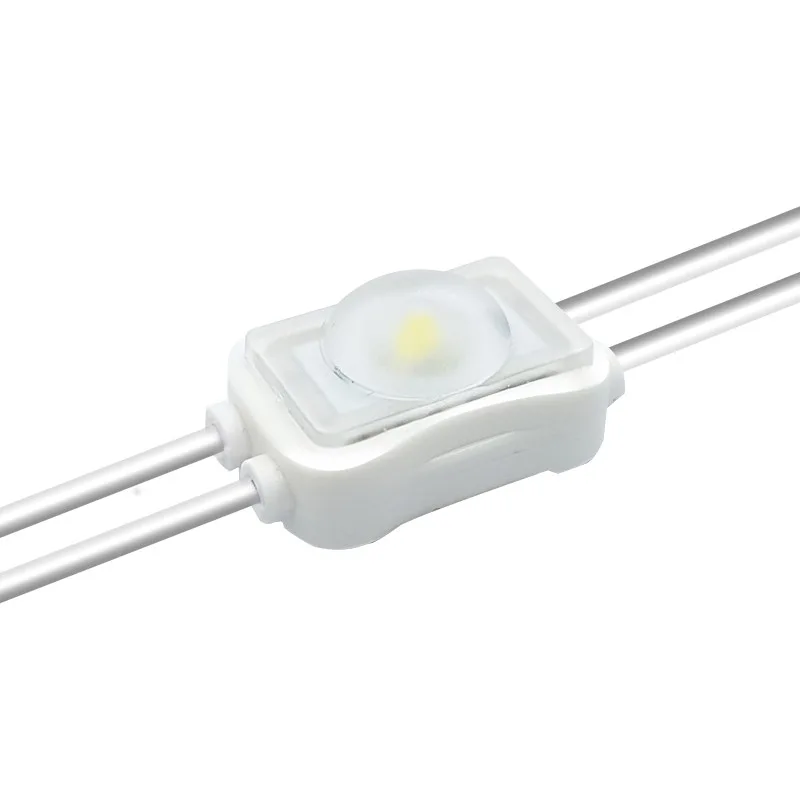

ColibriLED CL.01E.65 — LED module for signs and lightboxes

Name: ColibriLED CL.01E.65 — LED module for signs and lightboxes
Brand: ColibriLED
SKU: CL.01E.65

Single-SMD2835-LED module for lightboxes and channel letters: 12 V DC, 0.36 W and 6500 K. A 160° beam angle and IP65 protection support sign-lighting applications.

Price on request

Enquiry

Manufacturer code: CL.01E.65CL.01E.65On request

Overview

ColibriLED CL.01E.65 is designed for internal illumination of lightboxes and channel letters. Its single SMD2835 LED produces cool-white light at 6500 K, distributed through a 160° lens. The module operates at 12 V DC with a rated power of 0.36 W. Constant-current control is incorporated in the module. Select the power supply for the specified 12 V DC input and the combined load of the installed modules. Double-sided tape or a screw can be used for mounting. The IP65 rating applies to the module, not the complete installed sign. Protect wiring connections separately and choose a power supply suitable for the installation environment. Check module placement against the sign depth and the face panel's light diffusion: beam angle alone does not determine the correct spacing.

Specifications

Electrical

voltage (V DC): 12

Power

power (kW): 0.00036

Lighting

LED count: 1

What it suits

Application: lightboxes, channel letters and indoor or outdoor illuminated signs.
voltage: 12 V DC.
power: 0.36 W.
LED count: 1.

Related products

The whole category

Manufacturer

ColibriLED

ColibriLED offers LED modules and strips for illuminated signs, light boxes and channel letters. The range includes lighting components for different installation depths and sign structures. Start with the sign itself: its shape, dimensions and the depth available for lighting. Use these details to compare specific modules or strips. A single product's properties do not apply to the entire range; check the chosen model's technical data against the intended construction.
