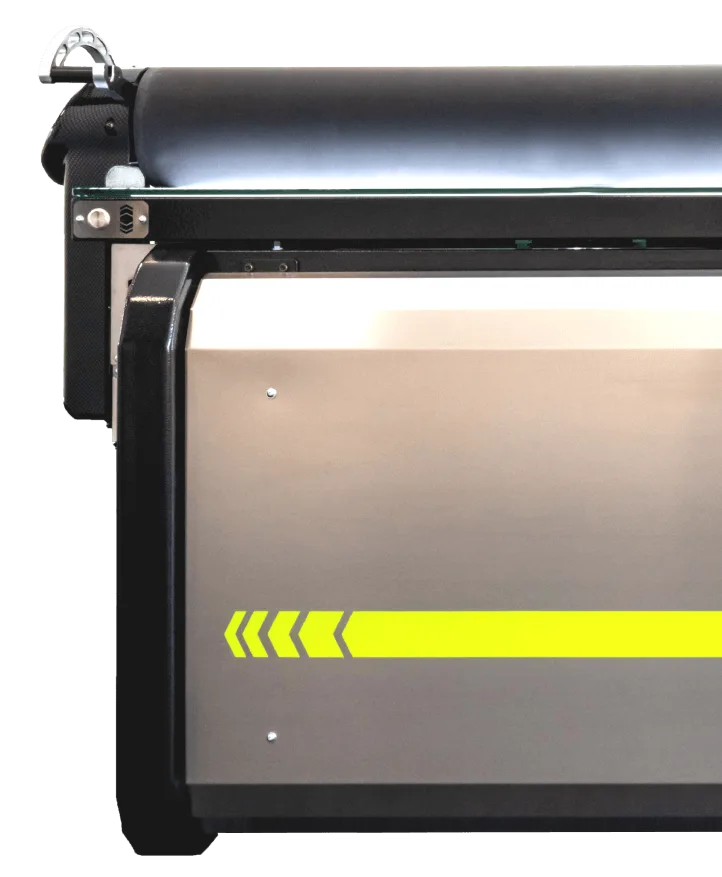

Lamidesk SuperSpeed CNC Series — flatbed application and laminating table

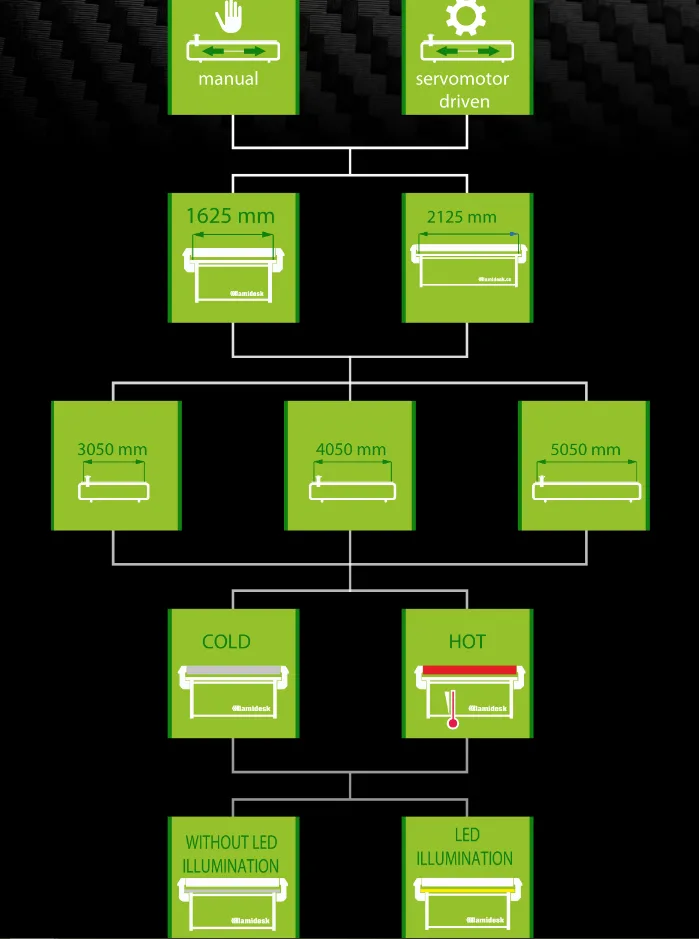

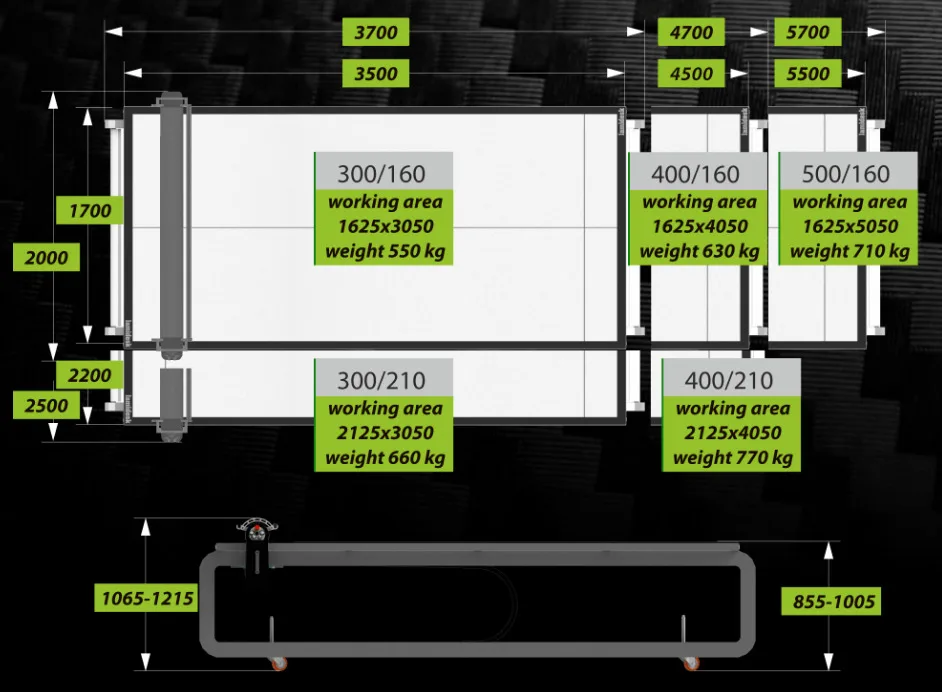

Lamidesk SuperSpeed CNC Series is designed for applying adhesive films to boards and laminating printed graphics. CNC controls movement of the roller assembly here; this is not a CNC cutting or routing machine. Repeatable position control Three positions can be stored: the start of the job, a position for removing the liner and preparing the film, and the end or parking position. Proportional pedals control forward and reverse movement, while separate buttons raise or lower the roller. Size and configuration The range includes different table sizes. LED backlighting and other accessories depend on the selected package. The manufacturer specifies a standard maximum sheet thickness of 70 mm and an optional version up to 300 mm; these limits do not apply equally to every configuration. Preparing the workspace The manufacturer's compressed-air requirement is 6 bar and 4 l/min. Specify your largest board format, thickness and required accessories when selecting a table. Roller traverse time is not the duration of a complete laminating cycle.
