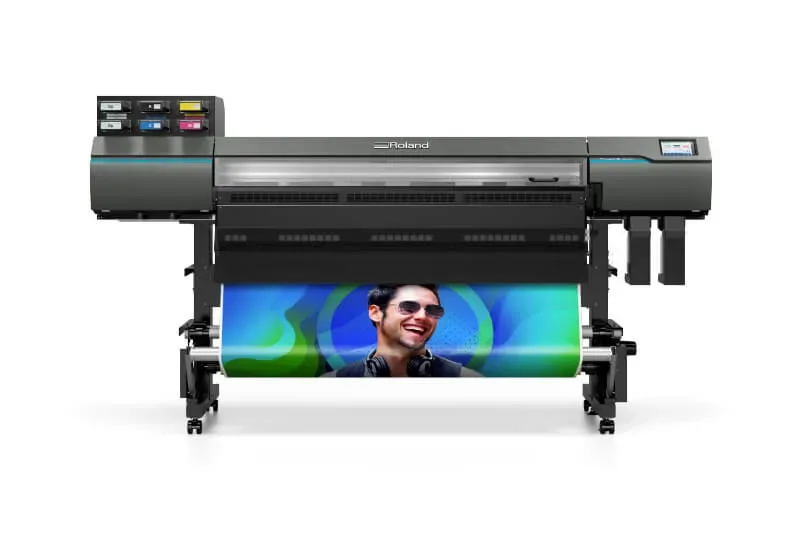

Roland DG TrueVIS AP-640 — wide-format resin printer

Resin/latex roll printer for vehicle graphics, wallcoverings and display work. Up to 1,615 mm print width; contour cutting requires a separate plotter.

dryer temperature (°C): 70–110
ink colours: CMYK + Optimizer, 700 ml pouches
maximum roll weight (kg): 45
maximum media thickness (mm): 1
media width (mm): 259–1625

Manufacturer code: AP-640TrueVIS AP-640On request

Overview

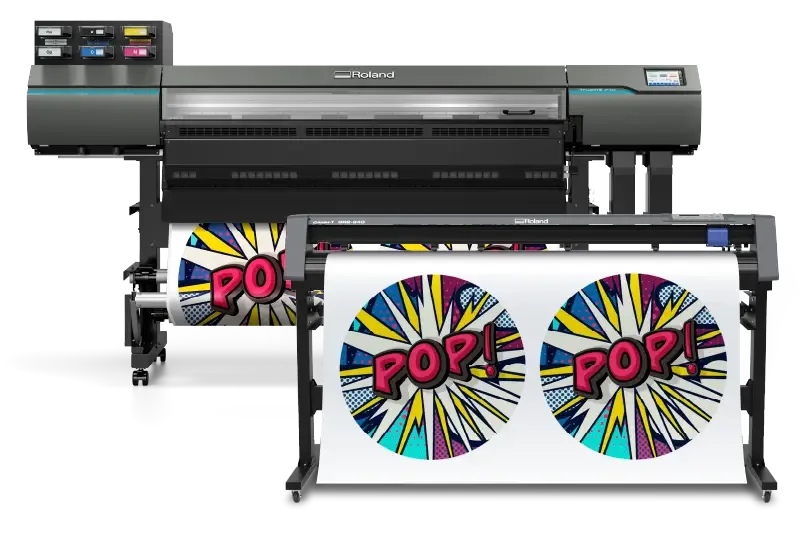

The Roland TrueVIS AP-640 is a roll-fed resin/latex printer for vehicle graphics, wallcoverings and exhibition displays. Its CMYK inks work with an optimizer; an air-curtain dryer prepares prints for finishing without the long outgassing stage associated with solvent printing. The maximum print width is 1,615 mm. The machine accepts rolls up to 1,625 mm wide and 45 kg, supporting longer runs and panelled graphics. Media profiles, colour management and calibration remain important when matching adjacent panels. AP-640 does not integrate contour cutting. Printed marks allow a separate compatible cutting plotter to follow the graphics. Check the material's temperature tolerance and laminate compatibility before production; dryer settings range from 70 to 110 °C.

What it suits

Application: professional sign, display and graphics production.
media width: 259–1625 mm.
printing width: 1615 mm.
maximum media thickness: 1 mm.

Specifications

Download PDF

Dryer

dryer temperature (°C): 70–110

Ink system

ink colours: CMYK + Optimizer, 700 ml pouches

Media

maximum roll weight (kg): 45
maximum media thickness (mm): 1
media width (mm): 259–1625

Physical

dimensions (mm): 2886 × 836 × 1550
weight (kg): 266

Printing

resolution (dpi): 1200

Work area

printing width (mm): 1615

Documents

Datasheet

Manufacturer

Roland DG

Roland DG manufactures wide-format printers, integrated print-and-cut systems, cutting plotters, engravers and milling equipment. These equipment groups serve sign production, textile decoration, product personalisation and industrial applications. When choosing equipment, first distinguish between printing alone, printing with cutting, and material processing through engraving or milling. An integrated print-and-cut system performs both operations in one machine, while a separate cutting plotter provides an independent workstation. The appropriate model depends on the material, workpiece format and planned production process.
