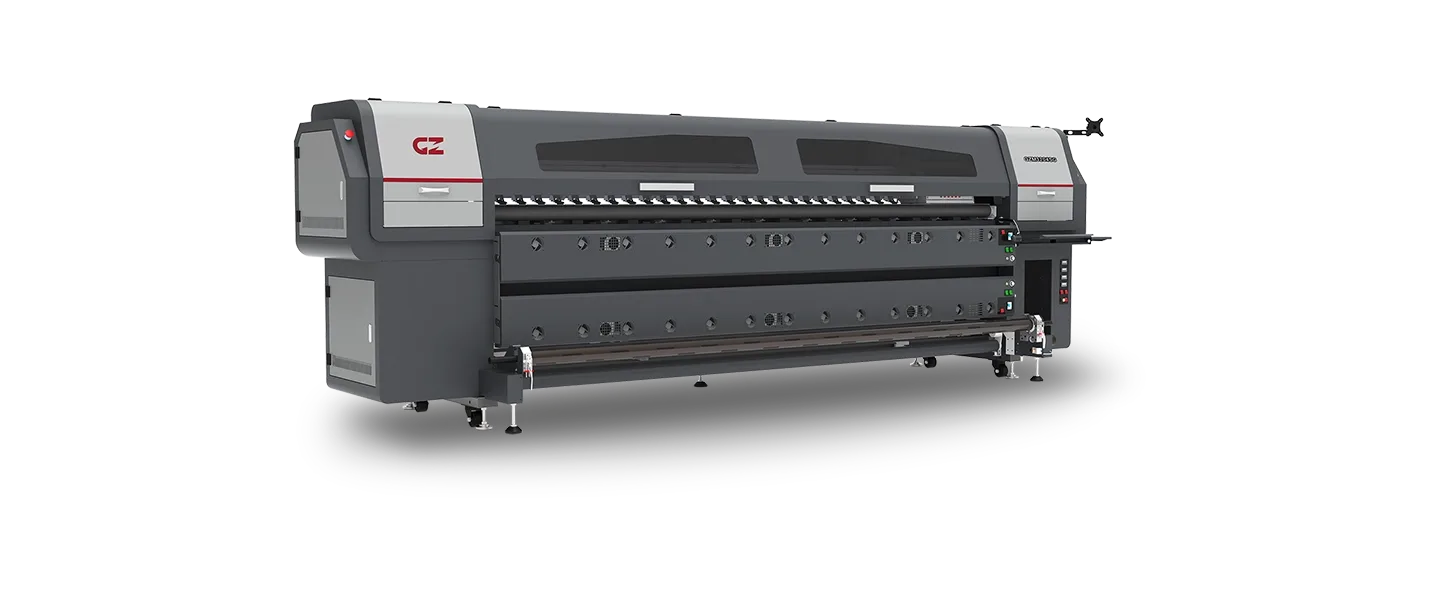

GONGZHENG GZM3204SG / GZM3202SG — wide-format solvent printer

A 3,200 mm solvent printer family for banners and sign vinyl. GZM3204SG has four StarFire 1024 heads and GZM3202SG has two, with 10 pl and 25 pl versions.

ink type: Solvent / eco-solvent inks
drop-volume versions: 10 pl / 25 pl
print heads: 4 or 2 StarFire 1024
RIP software: ONYX
printing width (mm): 3200

GZM3204SG / GZM3202SGOn request

Overview

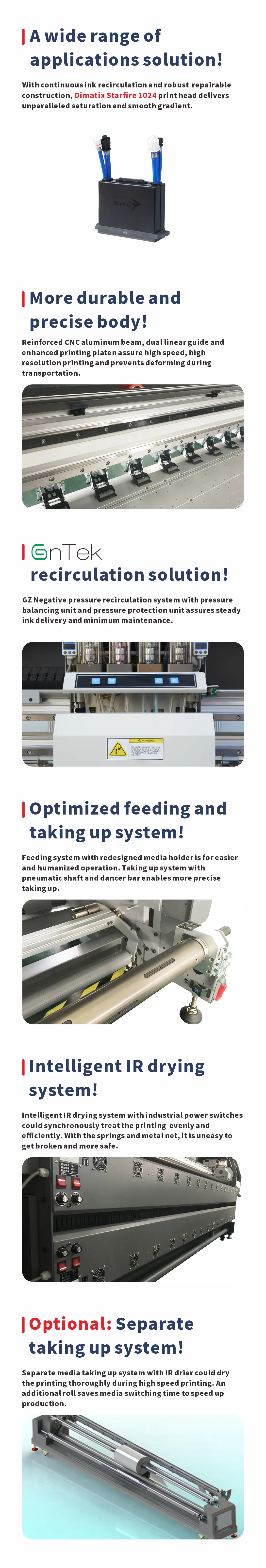

GZM3204SG and GZM3202SG print up to 3,200 mm wide on roll-fed sign media including banners, frontlit and backlit materials, vinyl and film. CMYK solvent or eco-solvent ink is selected for the particular printer version and substrate. GZM3204SG uses four StarFire 1024 heads; GZM3202SG uses two. A further choice is the 10 pl or 25 pl version. At 300 × 400 dpi, the manufacturer rates the 10 pl models at up to 234 and 129 m²/h respectively, and the 25 pl versions at up to 229 and 126 m²/h. These are mode-specific figures, not universal production rates. Automatic feeding and take-up, negative-pressure ink recirculation, multi-zone heating and IR drying support the roll workflow. A separate take-up system and mesh-printing kit are optional. Selection should account for detail, substrate preparation and drying conditions as well as speed.

What it suits

Print width up to 3,200 mm.
Four or two StarFire 1024 heads, depending on model.
10 pl and 25 pl versions have different speed ratings.

Specifications

Ink system

ink type: Solvent / eco-solvent inks

Printing

drop-volume versions: 10 pl / 25 pl
print heads: 4 or 2 StarFire 1024

Software

RIP software: ONYX

Work area

printing width (mm): 3200

Configurations

Price depends on the configuration

Print-head configuration Required

Tell us your volumes and materials and we will propose a configuration.

Get a price

Related products

The whole category

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.

GONGZHENG GZM3204SG / GZM3202SG — wide-format solvent printer in your workshop

Based on your production requirements, we will prepare a configuration, price and applicable delivery and service terms. We will confirm the timeframe after receiving your enquiry.
