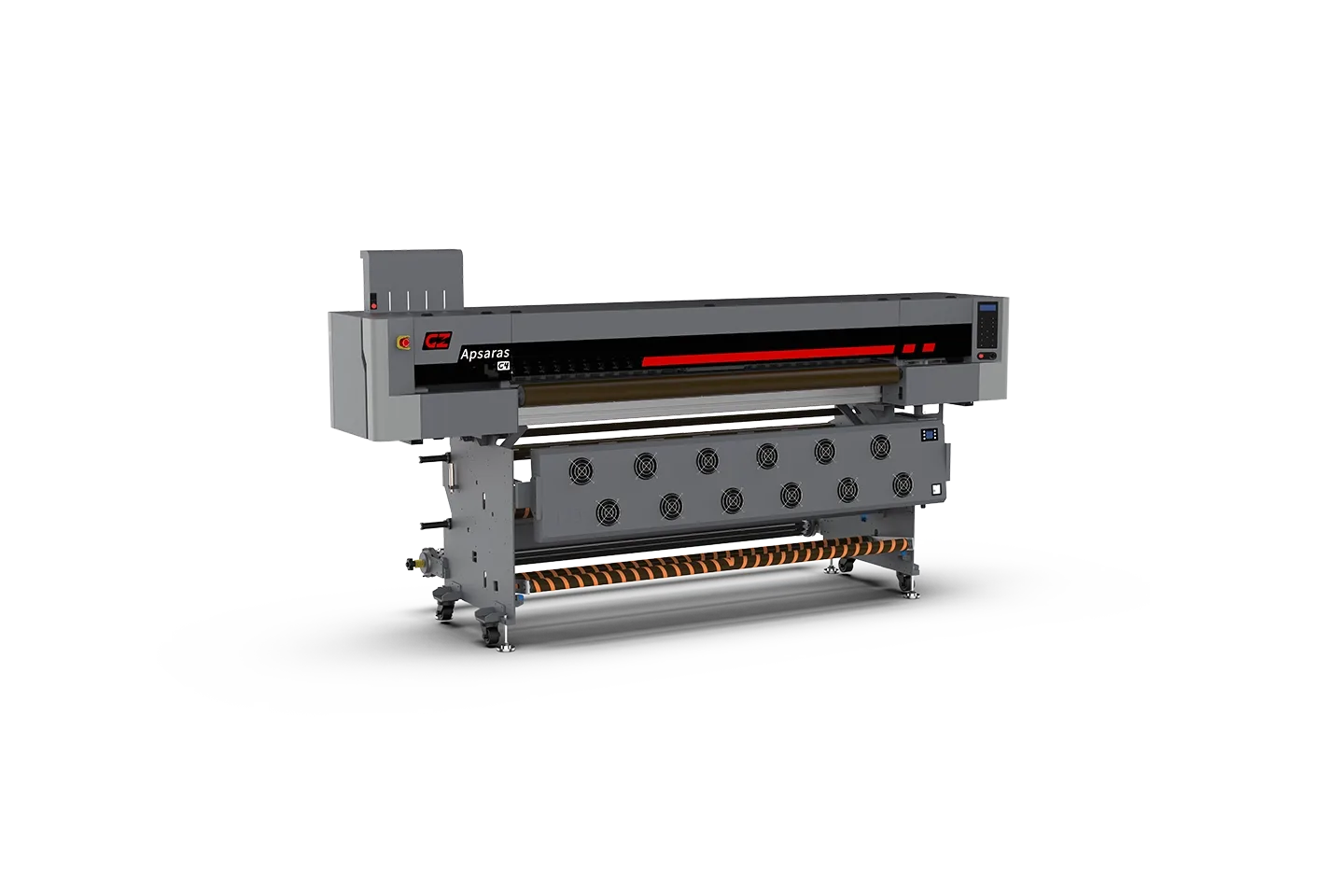

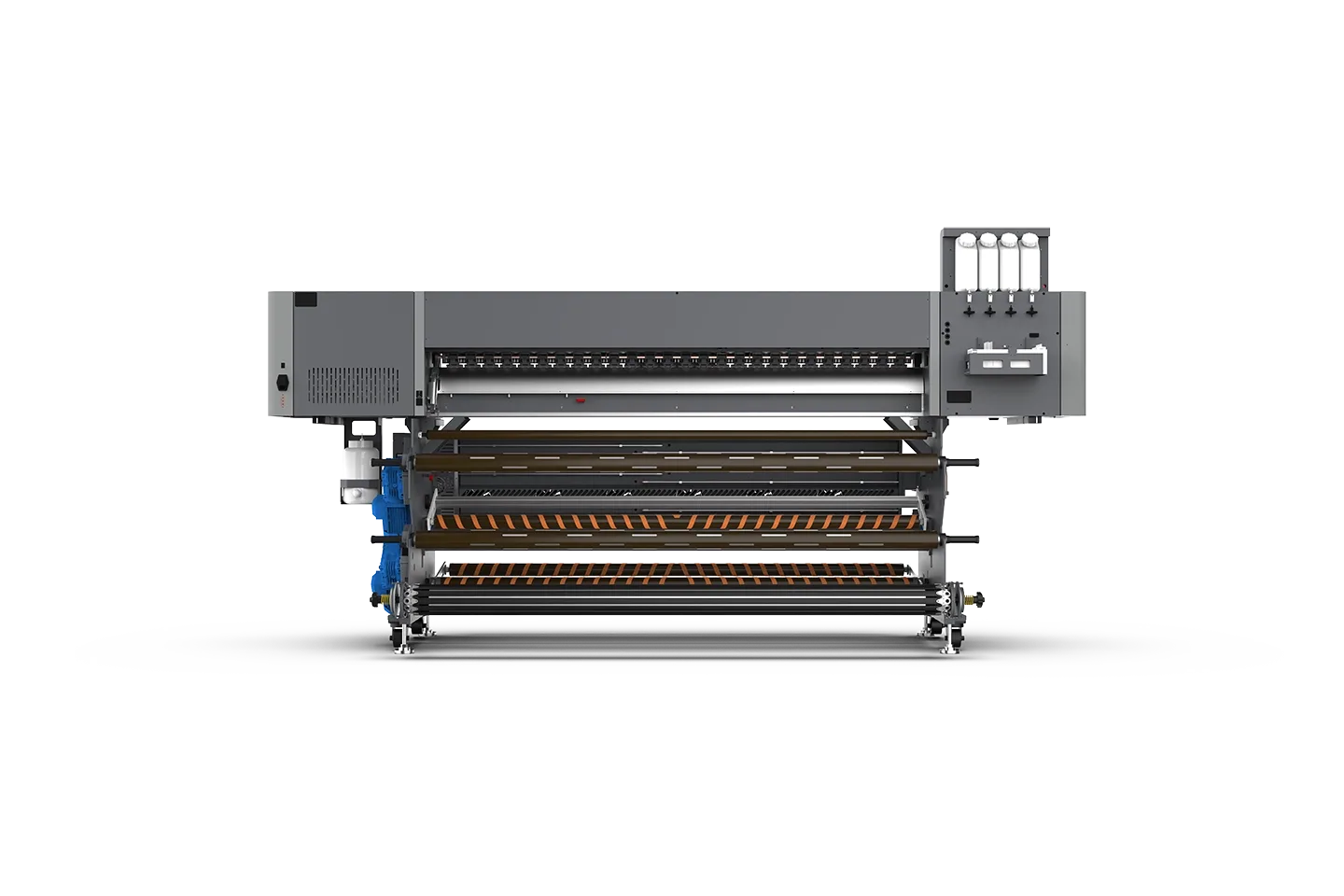

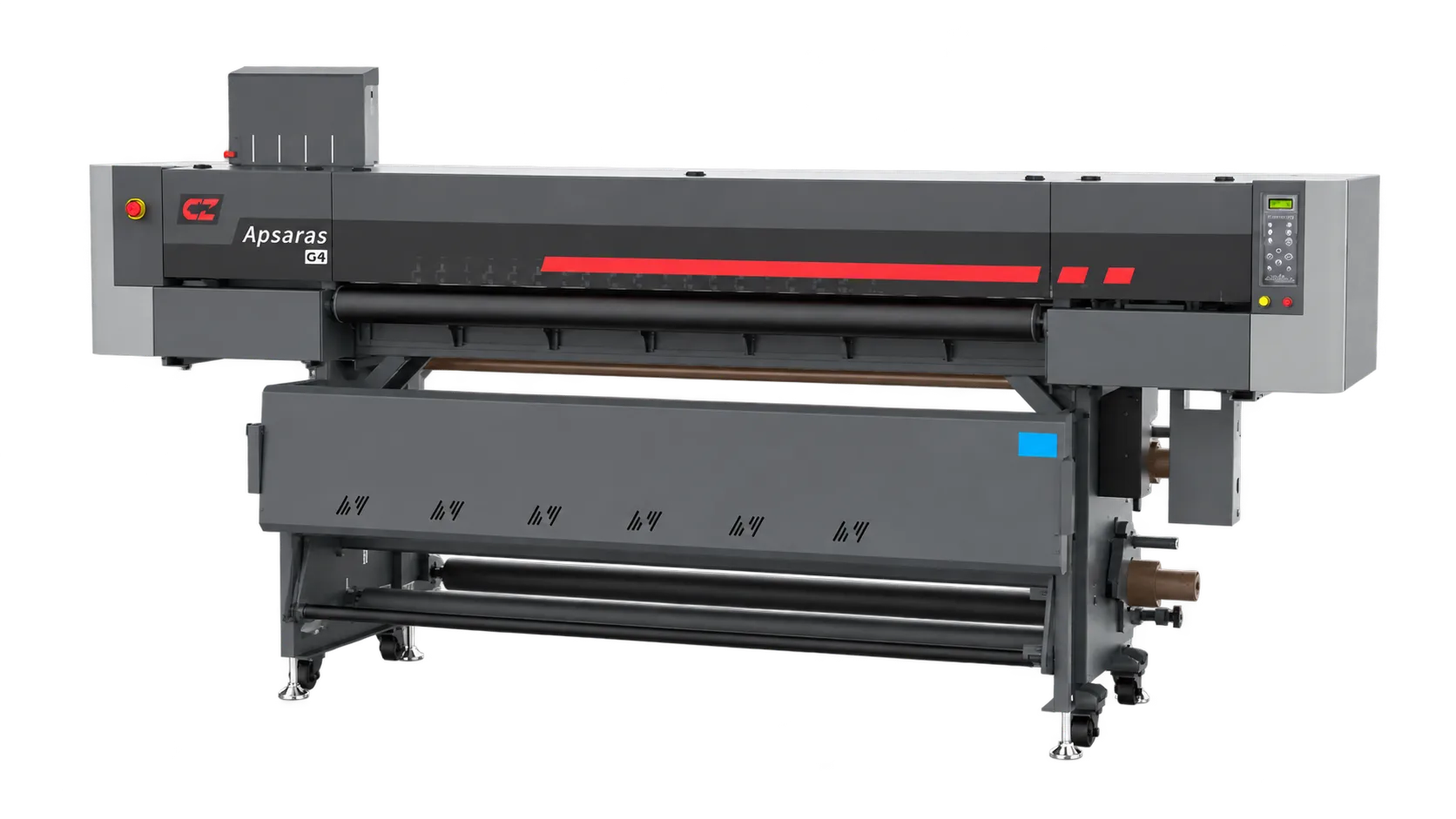

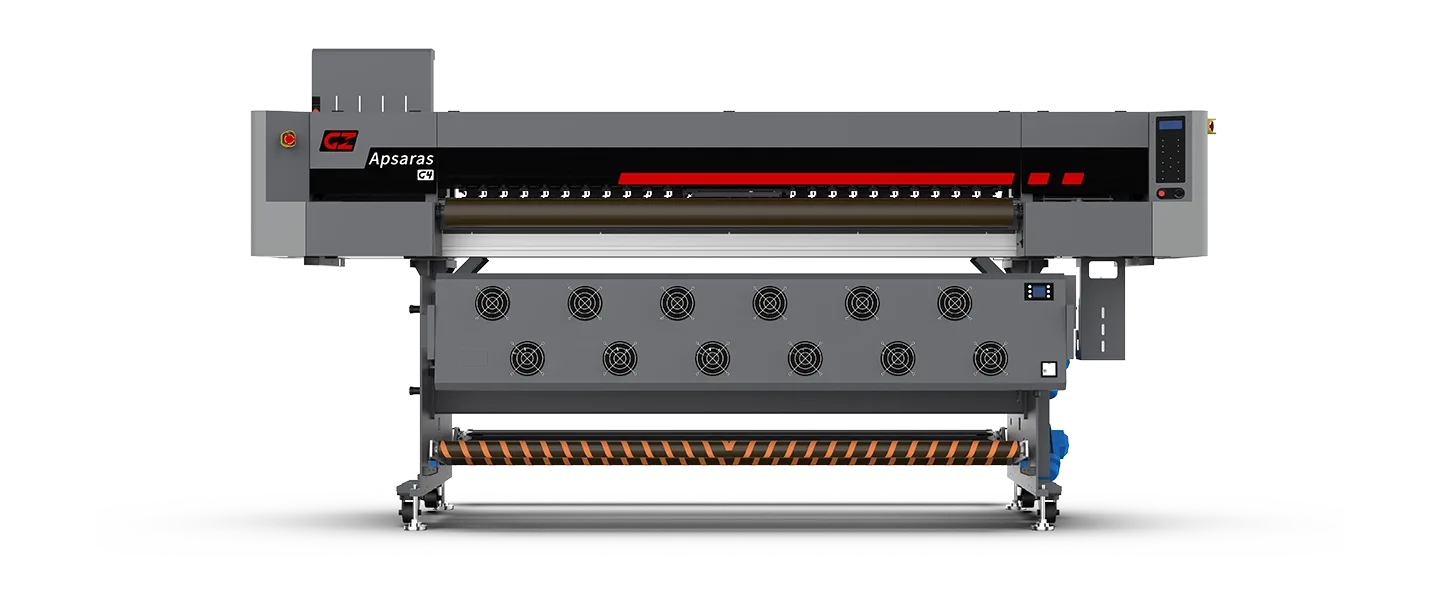

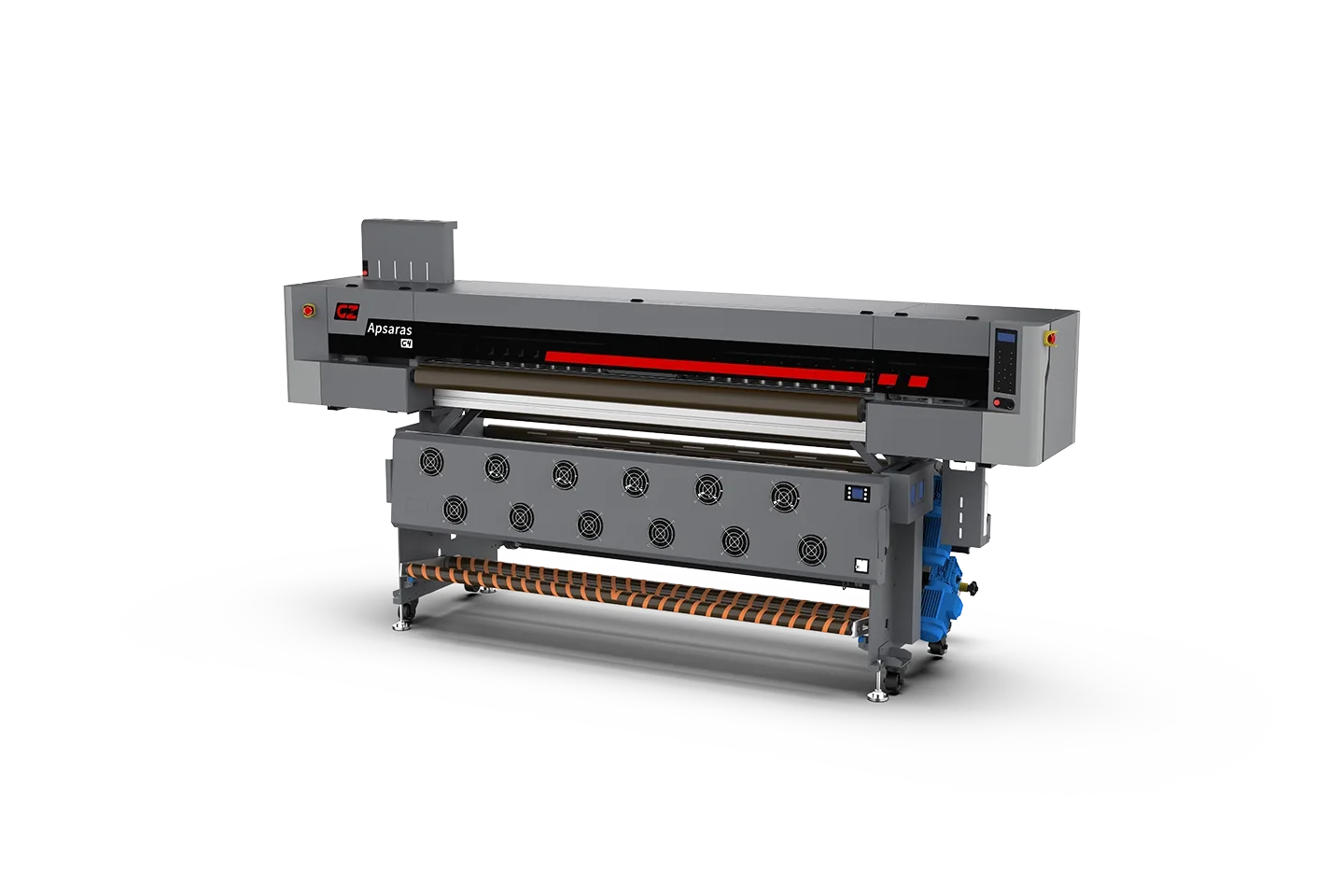

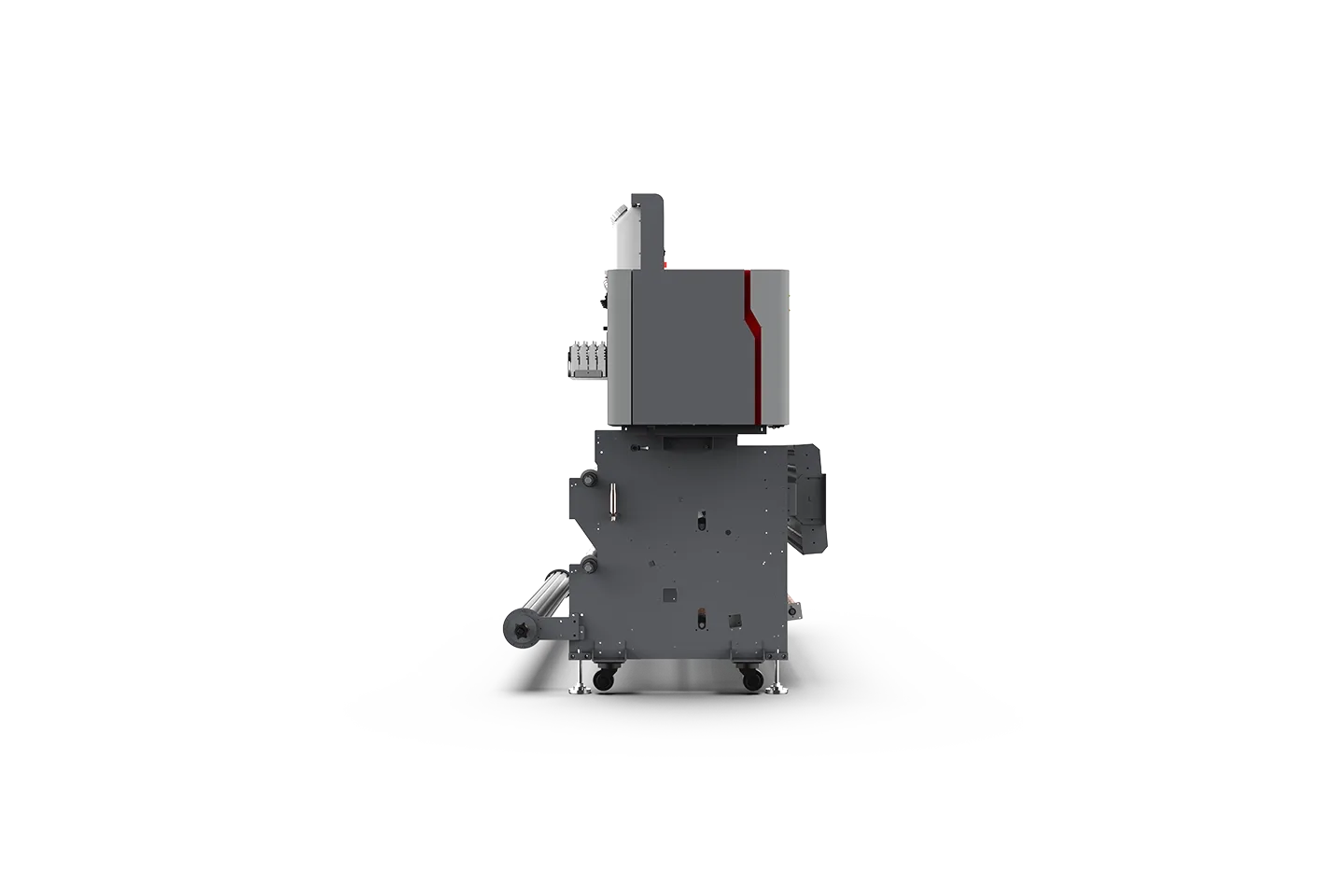

GONGZHENG Apsaras G4 — industrial dye-sublimation printer

A 1,950 mm dye-sublimation transfer-paper printer with four Epson I3200-A1 heads. Printed designs are subsequently heat-transferred onto textile.

colour configuration: CMYK
ink capacity: 3 L
media weight (g/m²): 35–100
draft speed (m²/h): 185
high-resolution speed (m²/h): 102

Manufacturer code: Apsaras G4Apsaras G4On request

Overview

The GONGZHENG Apsaras G4 prints sublimation ink onto transfer paper rather than directly onto finished garments. Transferring the image to a suitable fabric requires separate heat-transfer equipment. Four Epson I3200-A1 heads provide a print width of up to 1,950 mm on 35–100 g/m² paper. The manufacturer specifies 3 L ink tanks, an infrared dryer and automatic head capping and wiping. Rated output is 185 m²/h in Draft, 165 m²/h in Production, 102 m²/h in High-Res and 88 m²/h in Photo mode. Match the printer's output to the heat-transfer stage when planning a production line. CMYK or additional-colour configurations are selected before ordering.

What it suits

Four-head sublimation printing onto transfer paper.
Print width up to 1,950 mm; 35–100 g/m² paper.
3 L ink tanks and infrared drying.
165 m²/h in Production; 185 m²/h in Draft mode.

Specifications

Colour

colour configuration: CMYK

Ink system

ink capacity: 3 L

Media

media weight (g/m²): 35–100

Performance

draft speed (m²/h): 185
high-resolution speed (m²/h): 102
photo speed (m²/h): 88
production speed (m²/h): 165

Physical

installed dimensions (mm): 3391 × 1192 × 1730
weight (kg): 542

Printing

print heads: 4 × Epson I3200-A1

Work area

maximum print width (mm): 1950

Related products

The whole category

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.
