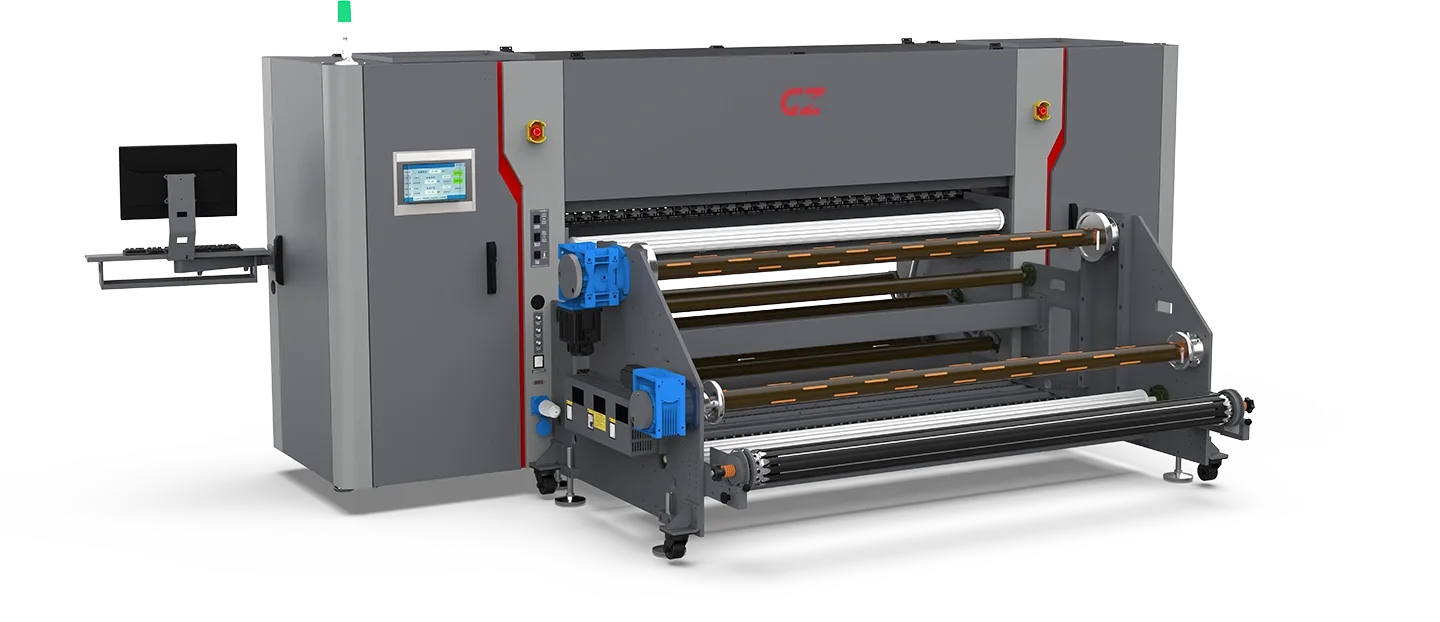

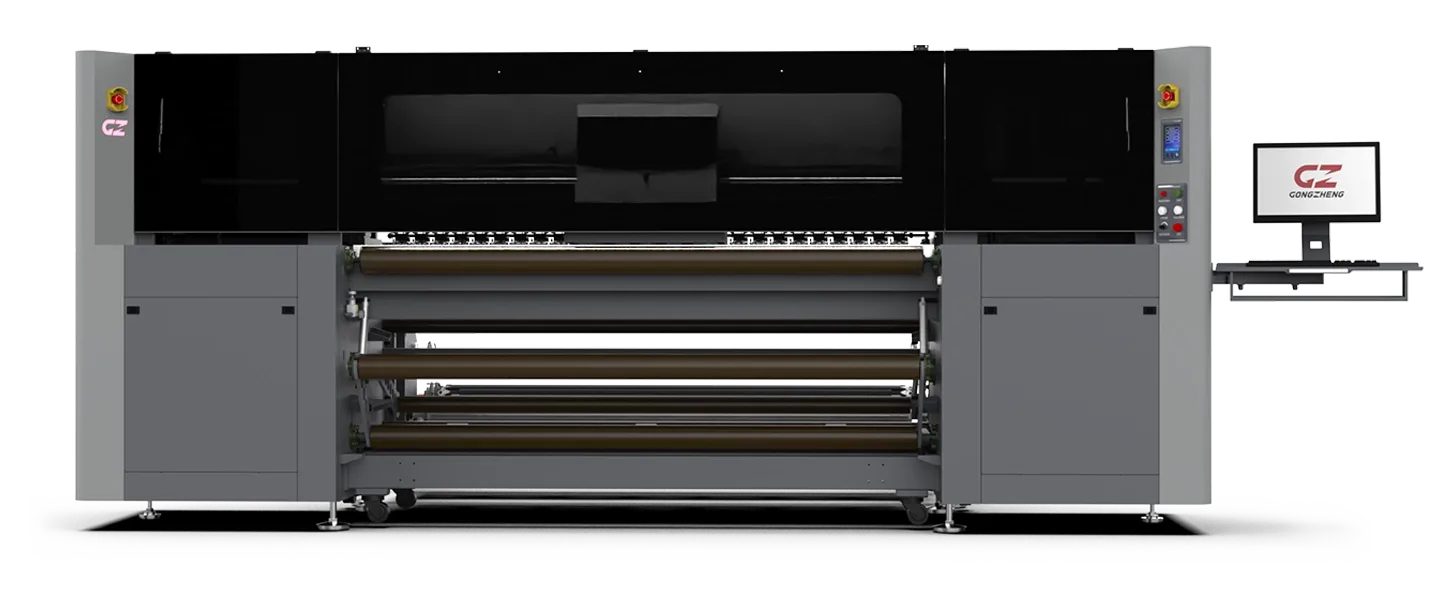

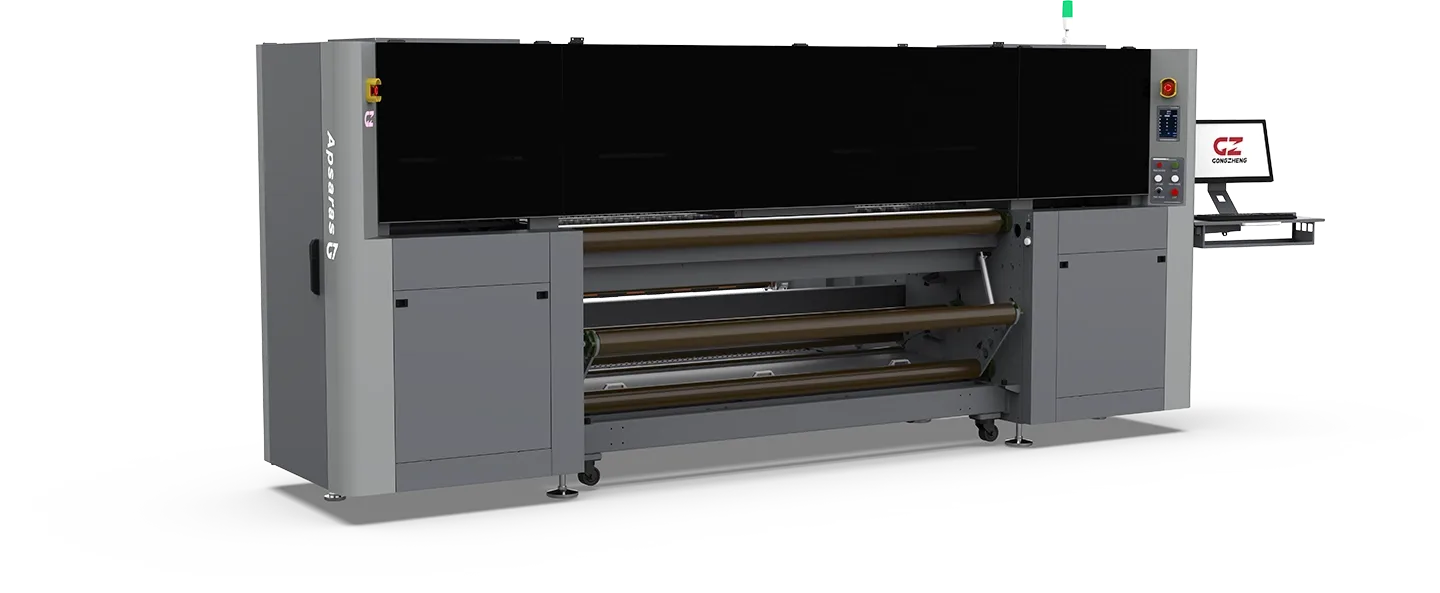

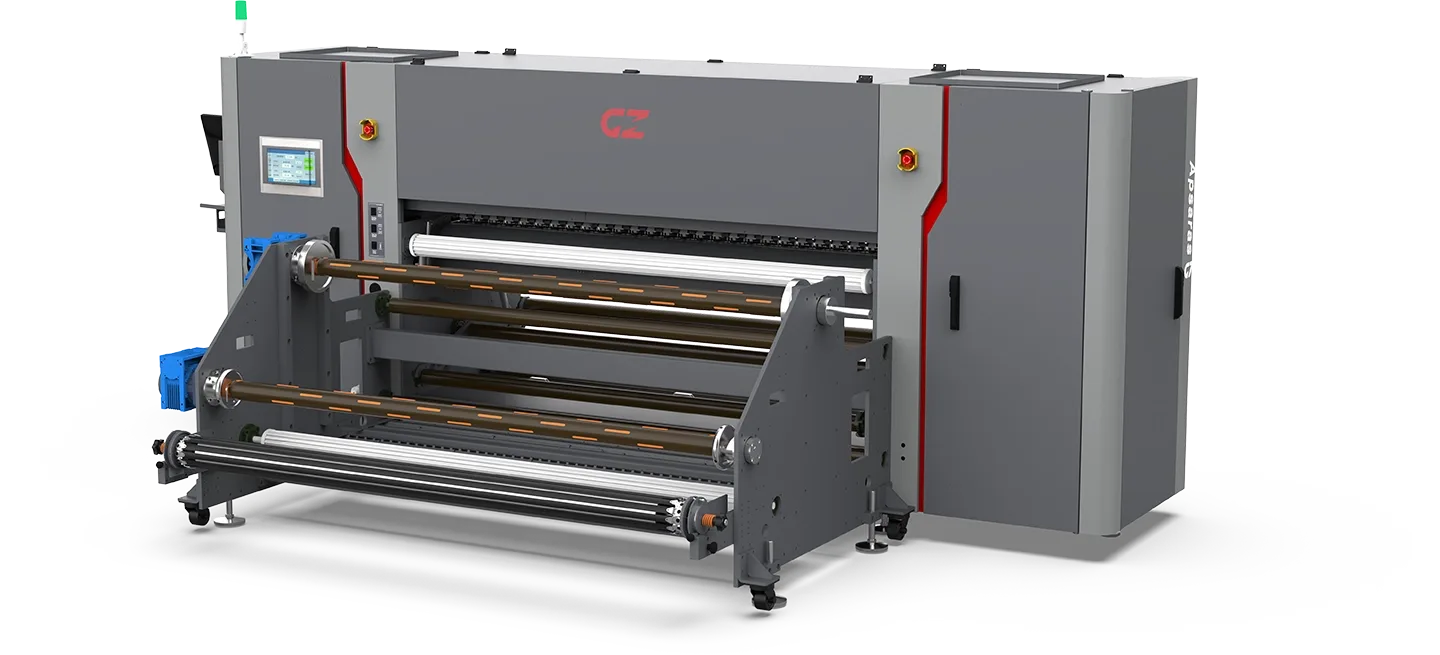

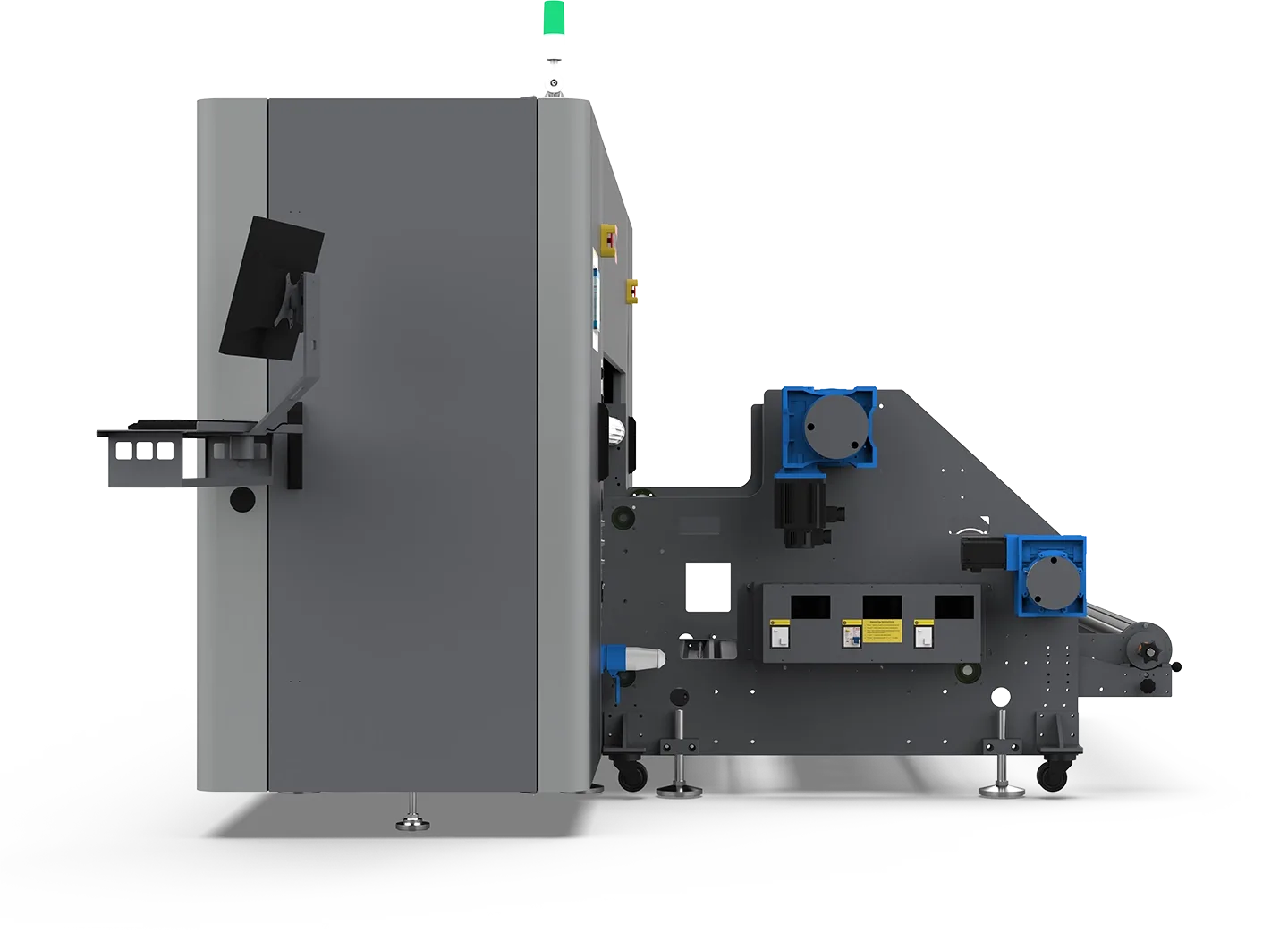

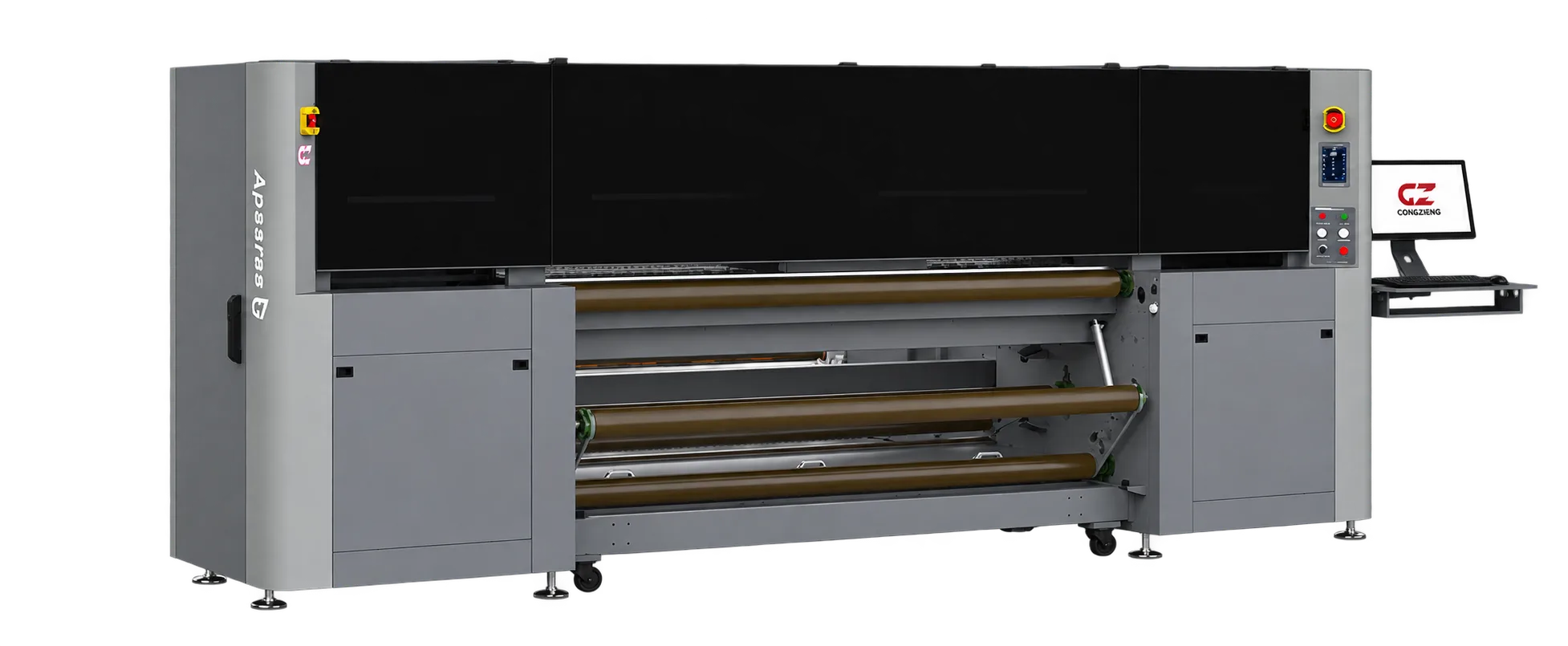

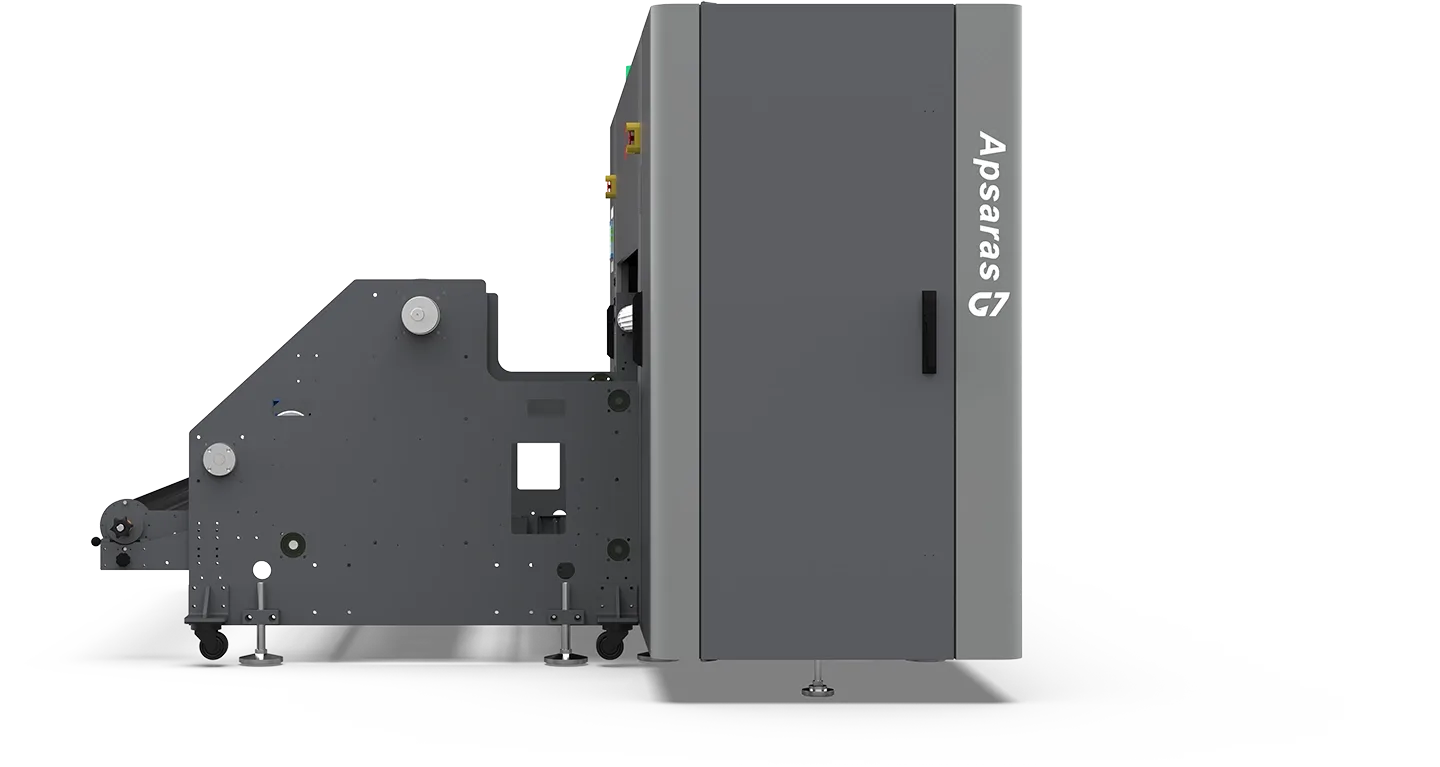

GONGZHENG Apsaras G7 — industrial dye-sublimation printer

A 1,950 mm industrial sublimation transfer-paper printer with 16 Epson I3200-A1 heads and 15 L ink tanks.

colour configuration: CMYK
ink capacity: 15 L
media weight (g/m²): 31–100
draft speed (m²/h): 663
high-resolution speed (m²/h): 359

Manufacturer code: Apsaras G7Apsaras G7On request

Overview

The Apsaras G7 is designed for higher-volume sublimation transfer-paper printing. It prints CMYK images onto 31–100 g/m² paper; transfer to a suitable fabric takes place in a separate heat-transfer stage. Sixteen Epson I3200-A1 heads, 15 L ink tanks and three IR dryers support printing up to 1,950 mm wide. Automatic head capping and wiping and the paper-handling system support long-roll workflows. Manufacturer-rated speeds are 663 m²/h in Draft, 520 m²/h in Production, 359 m²/h in High-Res and 265 m²/h in Photo mode. These are different modes, not interchangeable production results. Size the printing, drying and heat-transfer stages together.

What it suits

16 Epson I3200-A1 heads; print width up to 1,950 mm.
31–100 g/m² transfer paper and CMYK inks.
15 L ink tanks and three IR dryers.
520 m²/h in Production; 663 m²/h in Draft mode.

Specifications

Colour

colour configuration: CMYK

Ink system

ink capacity: 15 L

Media

media weight (g/m²): 31–100

Performance

draft speed (m²/h): 663
high-resolution speed (m²/h): 359
photo speed (m²/h): 265
production speed (m²/h): 520

Physical

installed dimensions (mm): 4071 × 912 × 1720 (printer)
weight (kg): 1328 (printer)

Printing

print heads: 16 × Epson I3200-A1

Work area

maximum print width (mm): 1950

Related products

The whole category

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.
