GONGZHENG Apsaras G9 — industrial dye-sublimation printer

A 2,200 mm industrial sublimation transfer-paper printer with 24 Epson I3200-A1 heads, CMYK inks and 25 L tanks for high-volume textile workflows.

colour configuration: CMYK
ink capacity: 25 L
media weight (g/m²): 31–100
draft speed (m²/h): 1115
high-resolution speed (m²/h): 573

Manufacturer code: Apsaras G9Apsaras G9On request

Overview

The Apsaras G9 prints onto 31–100 g/m² sublimation transfer paper up to 2,200 mm wide. Images are transferred onto suitable fabric using separate heat-transfer equipment; this is not a direct-to-garment printer. Its 24 Epson I3200-A1 heads work with 25 L ink tanks, two IR dryers and an industrial roll-handling system. The manufacturer specifies rolls up to 1,000 mm in diameter. Rated modes are 1,115 m²/h Draft, 967 m²/h Production, 573 m²/h High-Res and 485 m²/h Photo. Select a mode for the required image quality, paper and downstream heat-transfer capacity.

What it suits

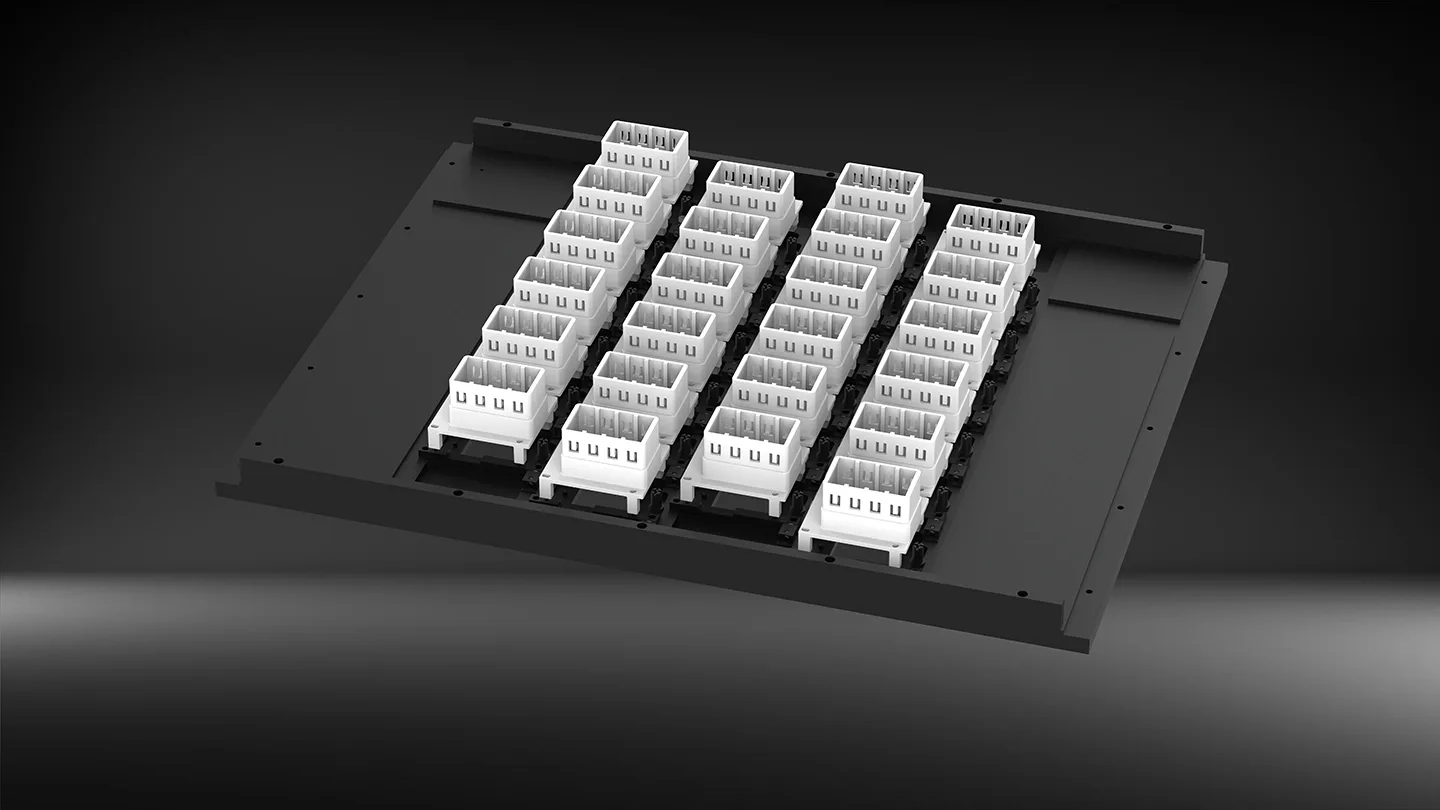

24 Epson I3200-A1 heads; print width up to 2,200 mm.
31–100 g/m² transfer paper, 25 L ink tanks and two IR dryers.
967 m²/h in Production; 1,115 m²/h in Draft mode.

Specifications

Colour

colour configuration: CMYK

Ink system

ink capacity: 25 L

Media

media weight (g/m²): 31–100

Performance

draft speed (m²/h): 1115
high-resolution speed (m²/h): 573
photo speed (m²/h): 485
production speed (m²/h): 967

Physical

installed dimensions (mm): 4520 × 1317 × 1921 (printer)
weight (kg): 2055 (printer)

Printing

print heads: 24 × Epson I3200-A1

Work area

maximum print width (mm): 2200

Related products

The whole category

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.
