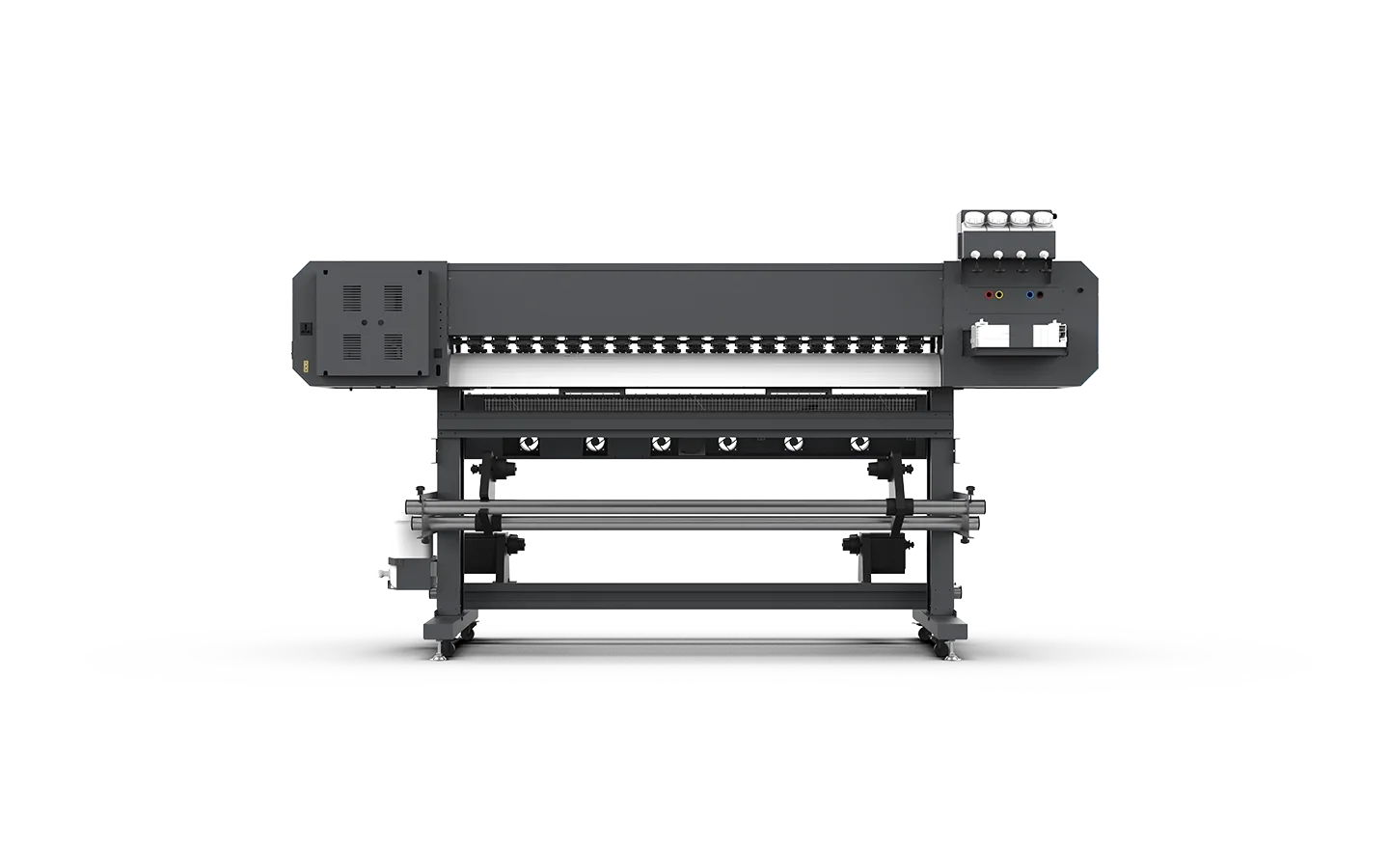

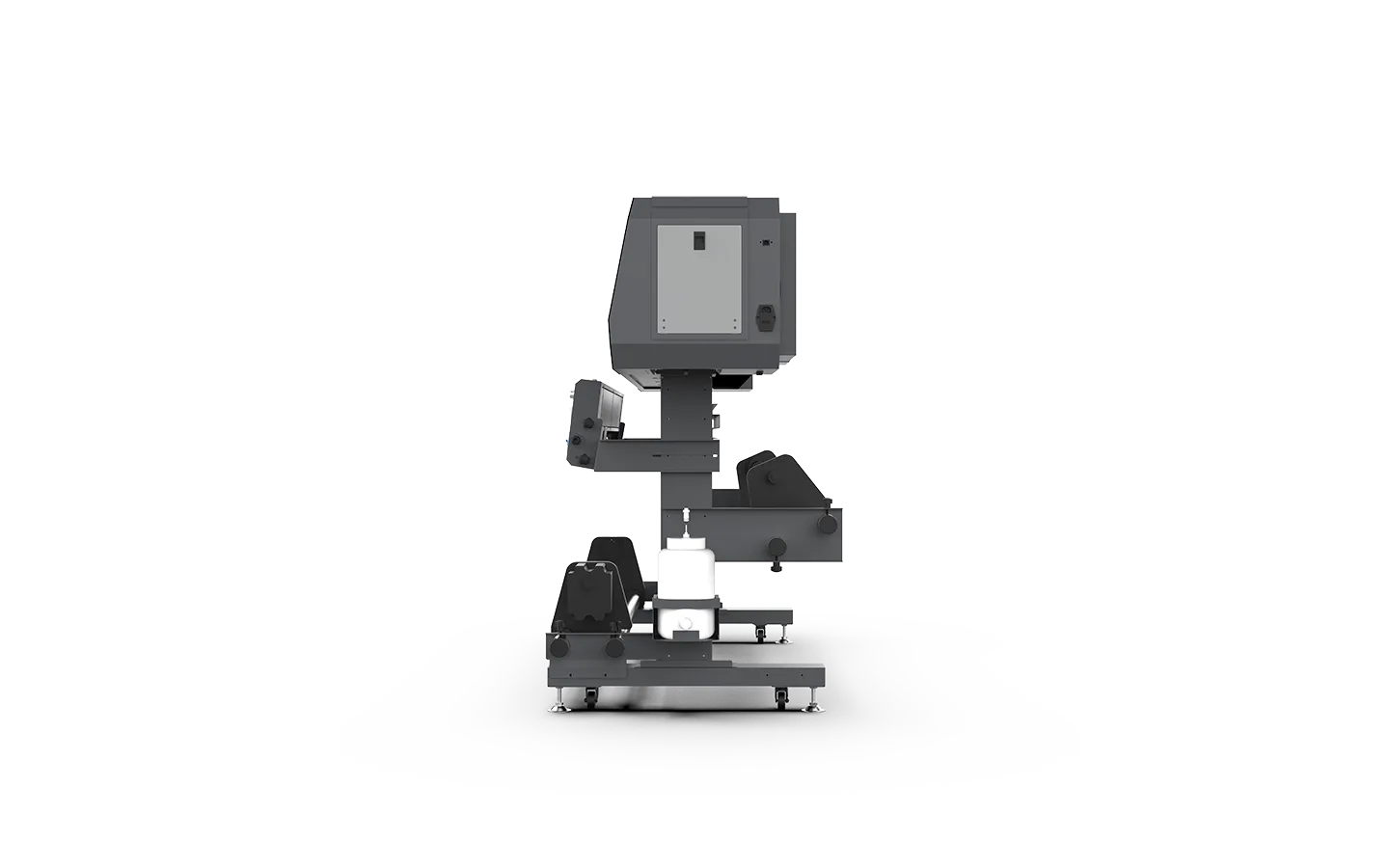

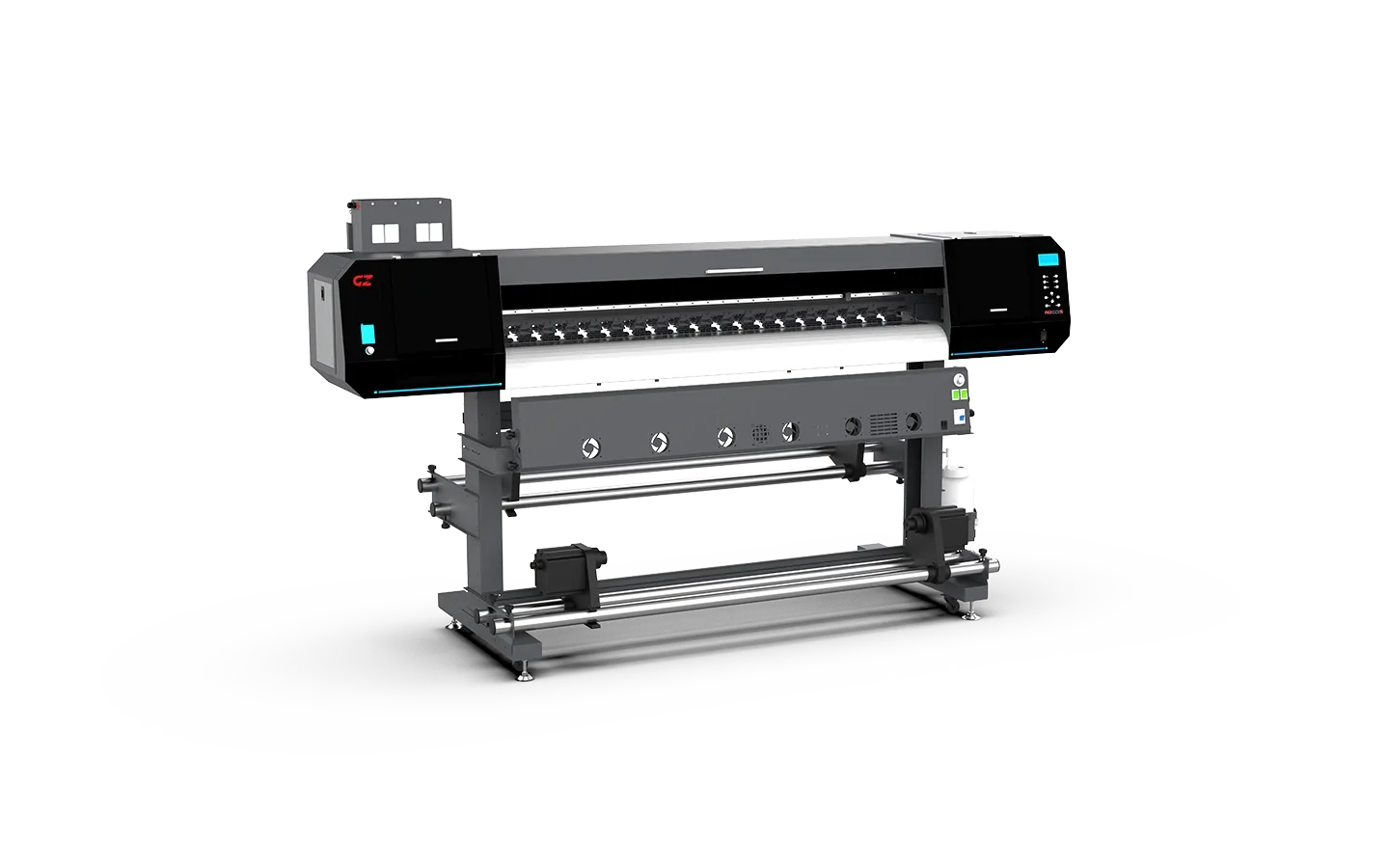

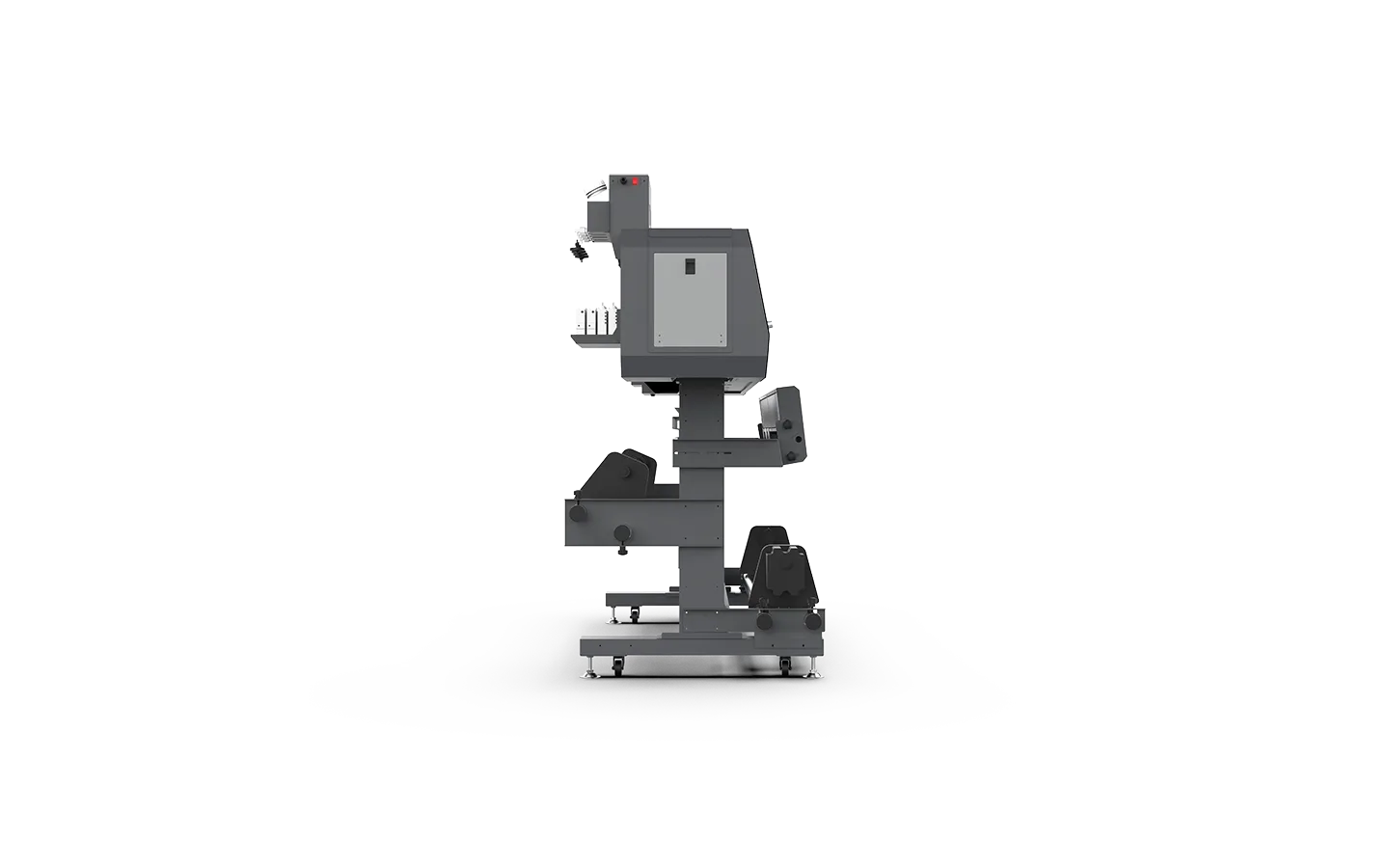

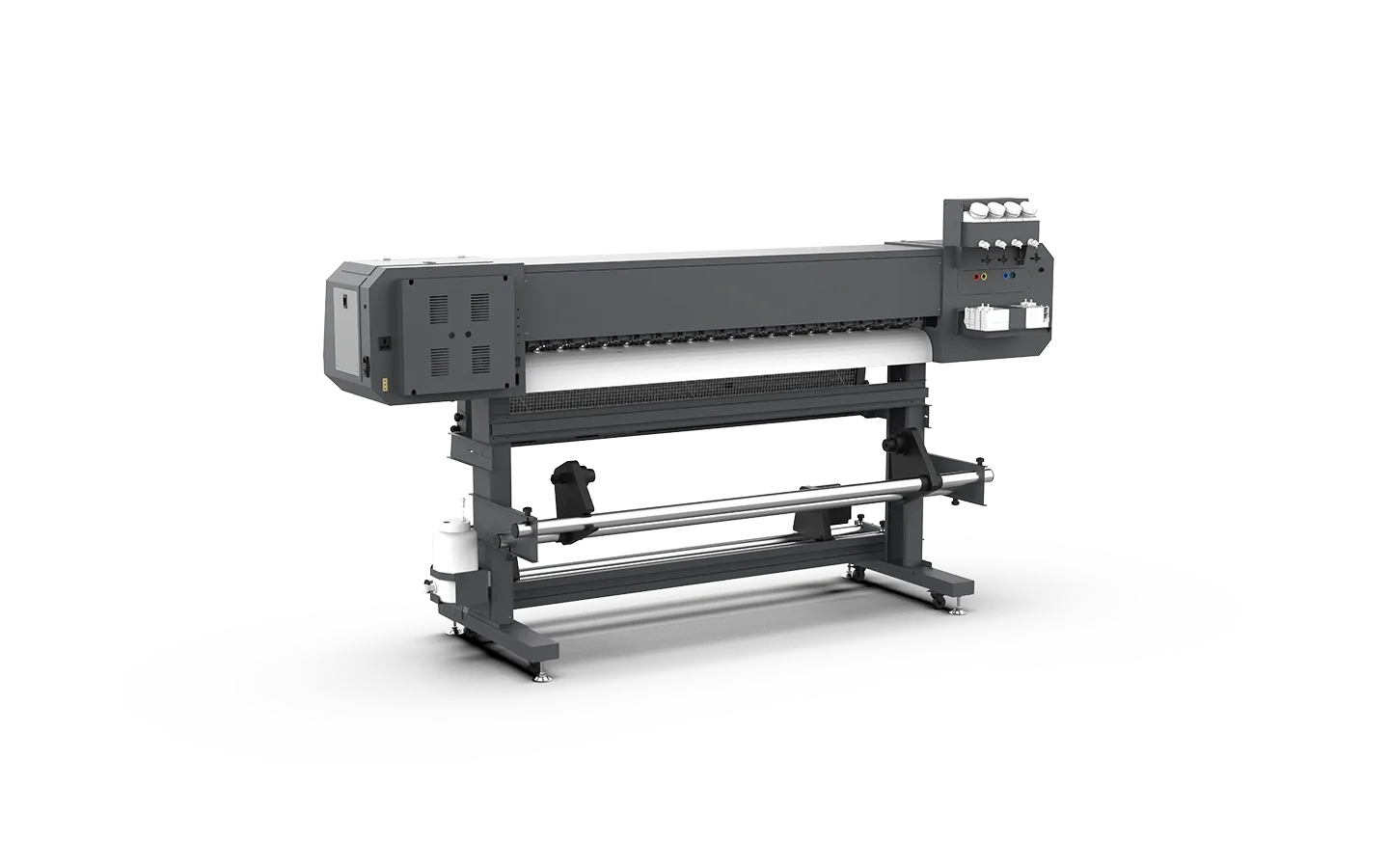

GONGZHENG ThunderJet AQ1601S — wide-format eco-solvent printer

A 1,600 mm eco-solvent printer for sign vinyl and banners, with one Epson I3200-E1 head, CMYK inks and 1.5 L ink tanks.

colour configuration: CMYK
ink capacity: 1500 ml
ink type: GZ EPI2 eco-solvent inks
maximum roll diameter (mm): 300
maximum roll weight (kg): 50

Manufacturer code: AQ1601SThunderJet AQ1601SOn request

Overview

The ThunderJet AQ1601S prints roll-fed sign media: banners, coated PP, vinyl and PVC film. One Epson I3200-E1 head uses CMYK eco-solvent inks across a print width up to 1,600 mm. Catalogue modes are 37 m²/h Draft, 27 m²/h Production, 21 m²/h High-Res and 19 m²/h Photo. Select a mode for graphic detail and intended viewing distance. Roll limits are 50 kg and 300 mm diameter. For sticker production, plan contour cutting separately: this is a printer, not an integrated print-and-cut system.

What it suits

Print width up to 1,600 mm; one Epson I3200-E1 head.
CMYK eco-solvent inks and 1.5 L tanks.
Rolls up to 50 kg and 300 mm diameter.

Specifications

Colour

colour configuration: CMYK

Ink system

ink capacity: 1500 ml
ink type: GZ EPI2 eco-solvent inks

Media

maximum roll diameter (mm): 300
maximum roll weight (kg): 50
media types: Banner / coated PP / vinyl / PVC film

Performance

draft speed (m²/h): 37
high-resolution speed (m²/h): 21
photo speed (m²/h): 19
production speed (m²/h): 27

Physical

installed dimensions (mm): 2760 × 810 × 1530
weight (kg): 190

Printing

print heads: 1 × Epson I3200-E1

Work area

maximum print width (mm): 1600

Related products

The whole category

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.
