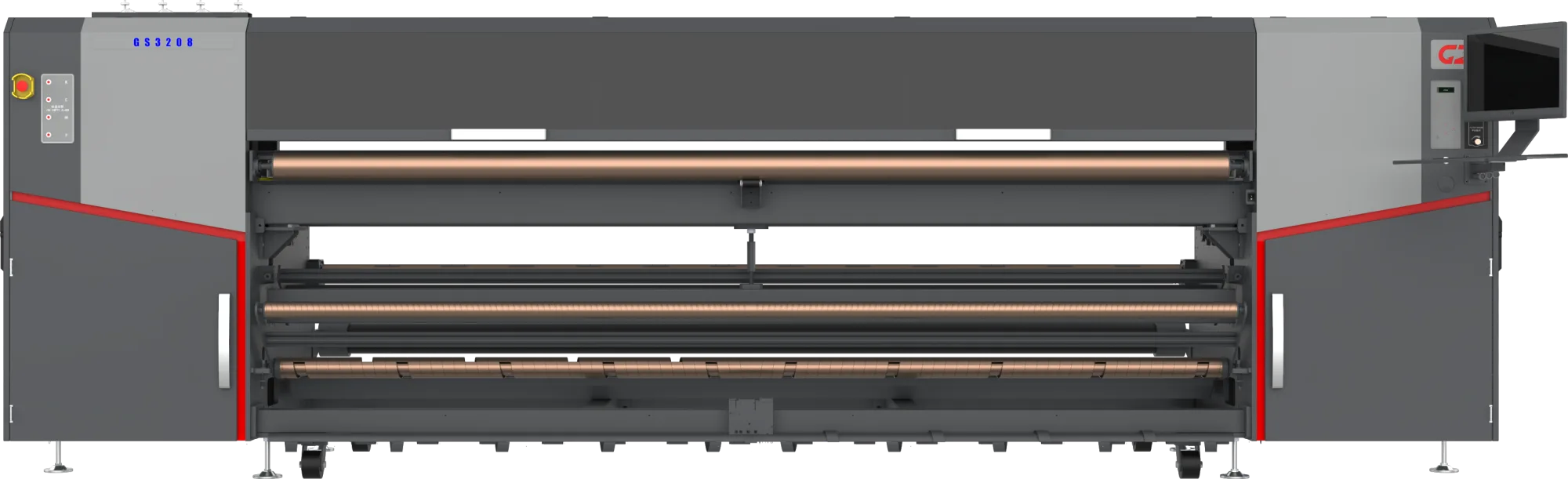

GONGZHENG ThunderJet GS3208T — industrial dye-sublimation printer

A 3,200 mm sublimation transfer-paper printer with 5 L ink tanks and dual IR drying for industrial textile workflows.

colour configuration: CMYK or CMYK + 4 optional colours
drying system: Dual IR drying
ink capacity: 5 L
maximum roll diameter (mm): 500
maximum roll weight (kg): 300

Manufacturer code: GS3208TThunderJet GS3208TOn request

Overview

The ThunderJet GS3208T prints onto sublimation transfer paper up to 3,200 mm wide. The image is then heat-transferred onto suitable fabric; the printer does not replace separate heat-transfer equipment. Its 5 L ink tanks and dual IR drying support a roll-fed workflow. Production planning should balance paper feeding, drying and calender capacity rather than focus only on maximum print speed. The print mode depends on detail requirements and transfer conditions. Head and colour configurations are tied to the particular machine version.

What it suits

Sublimation transfer-paper printing up to 3,200 mm wide.
5 L ink tanks and dual IR drying.

Specifications

Download PDF

Colour

colour configuration: CMYK or CMYK + 4 optional colours

Drying

drying system: Dual IR drying

Ink system

ink capacity: 5 L

Media

maximum roll diameter (mm): 500
maximum roll weight (kg): 300

Performance

draft speed (m²/h): 403
high-resolution speed (m²/h): 210
photo speed (m²/h): 165
production speed (m²/h): 320

Physical

dimensions (mm): 5154 × 1522 × 1596 (printer; 2022 catalogue version)
weight (kg): 930 (printer; 2022 catalogue version)

Printing

print heads: 8 × Epson I3200-A1 (2022 catalogue version)

Work area

maximum print width (mm): 3200

Documents

Datasheet

Related products

The whole category

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.
