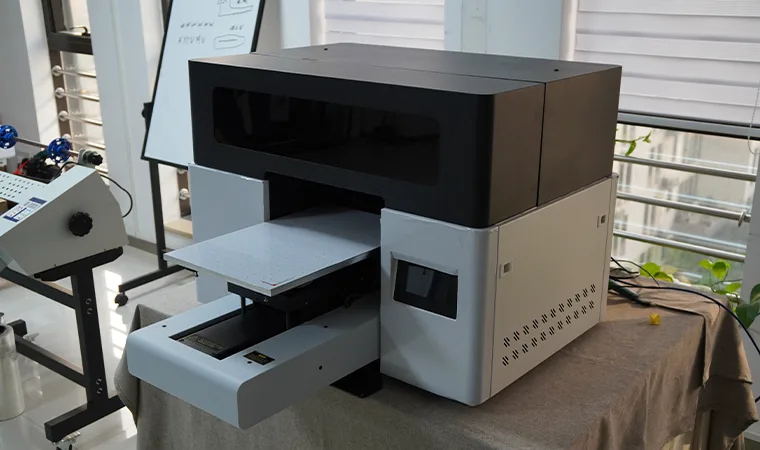

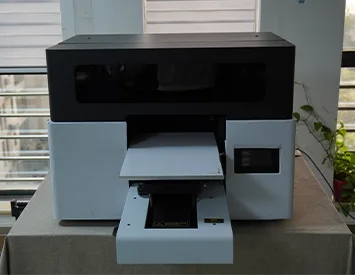

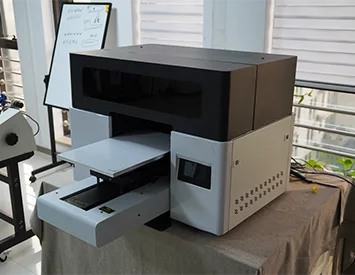

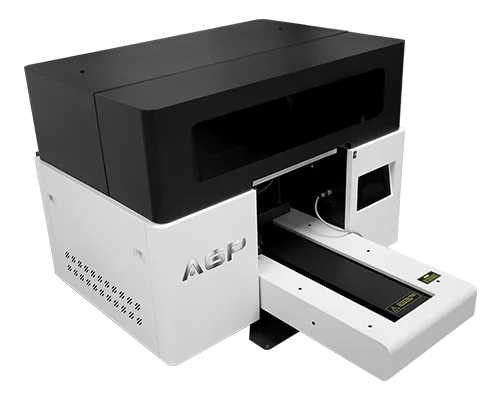

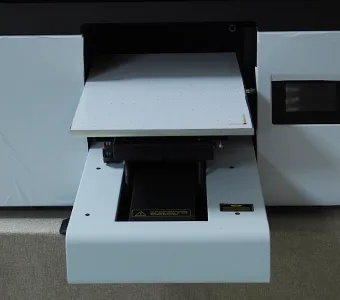

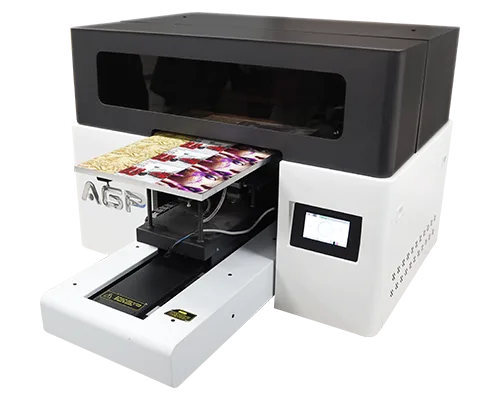

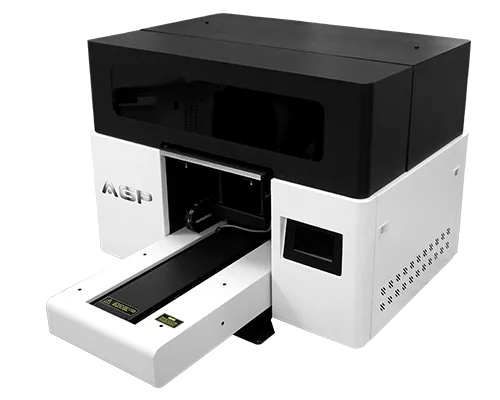

AGP UV3040 flatbed UV printer
Compact UV printer with a 297 × 420 mm platform and one Epson I3200-U1 printhead for personalising small products. The standard ink configuration is CMYK, white and varnish.
- Computer requirements
- 16 GB RAM; dedicated graphics card; 1 TB SSD; Intel Gigabit network card with Jumbo Packet-9014 mode for the camera; Windows 10 / 11, 64-bit
- Cylindrical workpiece size range (mm)
- Length 20–230; diameter 30–90 (with rotary device)
- Media thickness range (mm)
- 1–90
- Roll core inner diameter (mm)
- 76
- Operating relative humidity (% RH)
- 40–60
Manufacturer code: AGP-UV3040UV3040On request
Overview
The AGP UV3040 is designed for direct UV printing on small products, signs and items for personalisation. The manufacturer lists glass, PVC, acrylic, leather and plastic. This list alone does not establish adhesion to a particular coating or print durability; suitability depends on the substrate and selected ink.

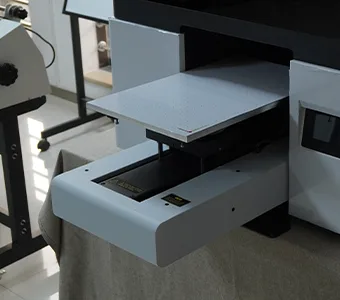

The 297 × 420 mm platform accommodates media 1–90 mm thick. CMYK+W+V is standard, with YMCK LC LM+W listed as an alternative configuration. The stated print-speed range is 0.28–3 m²/h; modes corresponding to individual speeds are not specified.

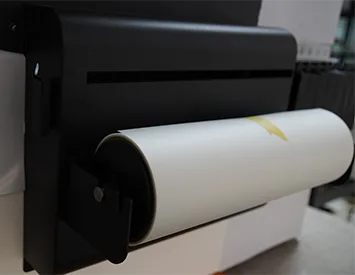

The manufacturer describes roll-feed and rotary devices. Supported roll width is 30–290 mm, roll diameter up to 150 mm and core inner diameter 76 mm. The rotary device supports cylinders 20–230 mm long and 30–90 mm in diameter. Device and RIP licence inclusion is unspecified.
What it suits
- 297 × 420 mm platform for media 1–90 mm thick.
- Standard colour, white and varnish configuration.
Specifications
Download PDFInk system
- ink type
- UV-curable ink
Media
- maximum roll diameter (mm)
- 150 (with roll-feed device)
- media types
- Glass, PVC, acrylic, leather, plastic; adhesion depends on substrate and ink
- media width (mm)
- 30–290 (with roll-feed device)
Performance
- production speed (m²/h)
- 0.28–3; modes not specified
Physical
- printer dimensions (mm)
- 1020 × 830 × 615
- weight (kg)
- 114
Printing

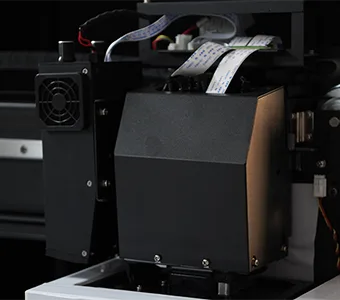

- print heads
- 1 × Epson I3200-U1
Work area
- working area (mm)
- 297 × 420
UV printer configuration and installation
- colour configuration
- Standard CMYK+W+V; alternative YMCK LC LM+W
- Computer requirements
- 16 GB RAM; dedicated graphics card; 1 TB SSD; Intel Gigabit network card with Jumbo Packet-9014 mode for the camera; Windows 10 / 11, 64-bit
- input voltage
- 220 V, 50–60 Hz
- power (kW)
- 0.5
- Operating relative humidity (% RH)
- 40–60
- working temperature (°C)
- 18–28
- supported data formats
- TIFF, JPEG, PDF, EPS, PNG, BMP
- Roll core inner diameter (mm)
- 76
- Media thickness range (mm)
- 1–90
- packaging
- 1160 × 1030 × 760 mm; 124 kg (current product page)
- Cylindrical workpiece size range (mm)
- Length 20–230; diameter 30–90 (with rotary device)
- RIP software
- RIIN / Flexiprint / Maintop / NeoStampa; licence inclusion to be confirmed
Configurations
Price depends on the configuration
- Ink configuration
Choose one
Tell us your volumes and materials and we will propose a configuration.
Get a priceDocuments
