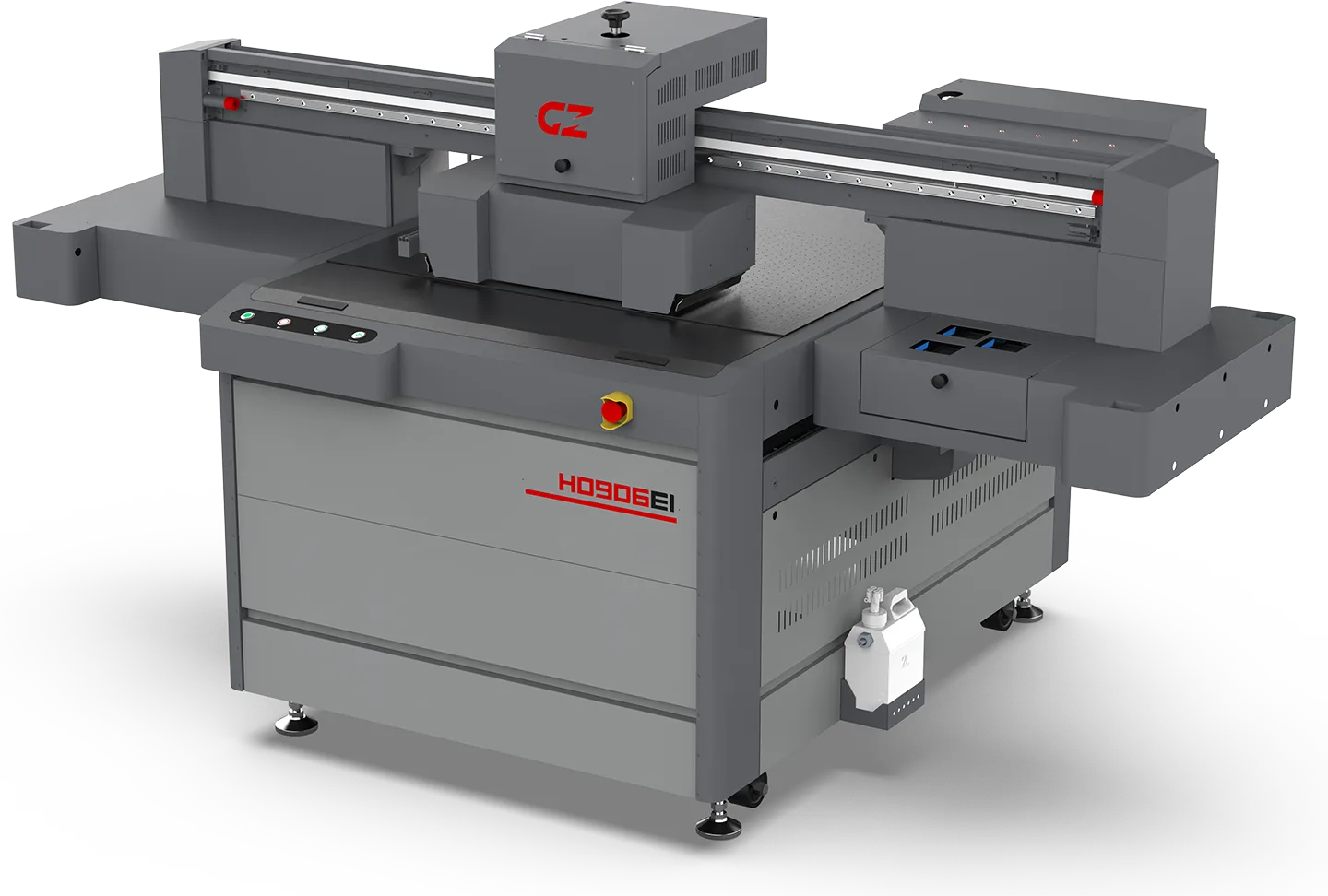

GONGZHENG H0906EI — flatbed UV LED printer

A 900 × 600 mm flatbed UV LED printer for direct substrate printing, with Epson I3200-U1 heads and material thickness up to 150 mm.

interface: Ethernet
ink colours: CMYK, white, varnish
maximum media thickness (mm): 150
dimensions (mm): 2180 × 1565 × 1371
weight (kg): 492

Manufacturer code: H0906EIH0906EIOn request

Overview

The H0906EI prints onto flat items within a 900 × 600 mm working area. Material up to 150 mm thick is placed on the bed, making this a printer for individual items rather than roll feeding. CMYK, white and varnish use depends on the head and ink configuration. White can form a separate layer, while varnish creates a surface effect. These layers change the print sequence and job duration. Selection depends on item dimensions, thickness and surface. Ink adhesion and primer requirements vary by material; UV printing does not imply universal substrate compatibility.

What it suits

900 × 600 mm working area.
Material thickness up to 150 mm.
Epson I3200-U1 heads and UV LED curing.

Specifications

Connectivity

interface: Ethernet

Ink system

ink colours: CMYK, white, varnish

Media

maximum media thickness (mm): 150

Physical

dimensions (mm): 2180 × 1565 × 1371
weight (kg): 492

Printing

print heads: 2–3 Epson I3200-U1

Work area

working area (mm): 900 × 600

Related products

The whole category

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.
