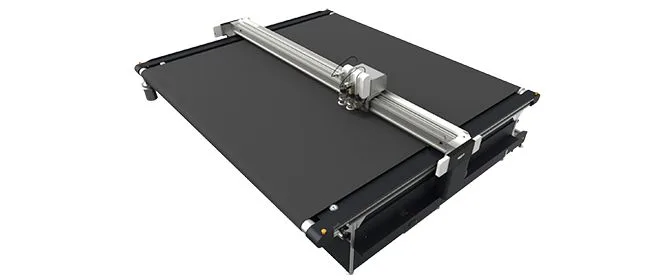

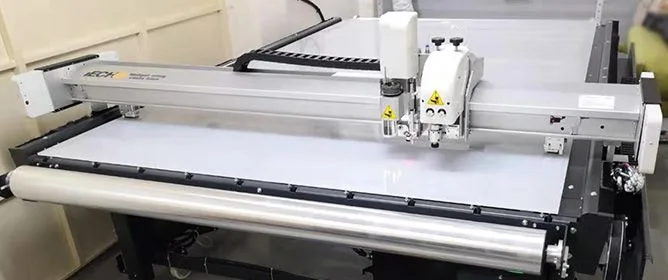

IECHO BK2 – flatbed digital cutting system
A modular system for cutting single or few material layers in sign, packaging, textile, furniture and composite production. Tooling is selected for the material and operation.
- Operating relative humidity (% RH)
- 20–80
- cutting precision (mm)
- 0.1 (brochure precision; measurement method unspecified)
- Vacuum pump power (kW)
- 5.5 / 7.5 / 9 / 11; configuration-dependent
- interface
- Serial port
- maximum media thickness (mm)
- Up to 50; material and tool dependent
Manufacturer code: BK2BK2On request
Overview
IECHO BK2 processes single or few material layers for signs, packaging, garments, upholstery, automotive interiors and composites. Different tools enable through cutting, kiss cutting, engraving, creasing, grooving and marking; not every operation is standard equipment.
The manufacturer lists textiles, PVC, films, paper, cardboard, corrugated and honeycomb board, foam-core and sandwich boards, leather and composites. Routing enables processing of acrylic and aluminium composite panels. Tool choice depends on material structure and thickness.
Four brochure sizes are available: BK2-1311, BK2-1713, BK2-2011 and BK2-2516. Working areas and floor footprints are listed separately. Custom length and width ranges of 800–5000 mm require manufacturer confirmation.
Vacuum hold-down secures the material. Conveyor feeding and collection, CCD camera positioning and automatic nesting support the production workflow. IECHO CutterServer controls motion. Construction includes a PMMA acrylic table, reinforced frame, infrared safety sensing and a control-box heat sink.
Tools, punching and routing heads, camera, automatic loading with edge control and stacking equipment are configuration choices, not a promise of standard inclusion. The brochure's 1000 mm/s speed, 0.1 mm precision and thickness up to 50 mm depend on the material and tool. The precision measurement method is not stated. Pump ratings are not total electrical consumption.
Specify the material, thickness, part size, required operations and sheet or roll feeding when selecting the configuration.
What it suits
- Modular cutting, punching and routing heads; selected for the job
- Vacuum hold-down and PMMA acrylic table
- CutterServer motion control and automatic nesting
Specifications
Download PDFAccuracy
- cutting precision (mm)
- 0.1 (brochure precision; measurement method unspecified)
Connectivity
- interface
- Serial port
Cutting
- maximum media thickness (mm)
- Up to 50; material and tool dependent
- cutting speed (mm/s)
- 1000 (brochure speed; application-dependent)
Formats
- supported data formats
- DXF, HPGL
Functions
- operations
- Through cutting, kiss cutting, engraving, creasing, grooving, marking; tool-dependent
Material holding
- table
- PMMA acrylic table
- material fixation
- Vacuum hold-down
Physical
- dimensions (mm)
- BK2-1311: 2100 × 1900; BK2-1713: 2500 × 2100; BK2-2011: 2800 × 1900; BK2-2516: 3200 × 2400
Power
- power supply (V)
- 220 / 380, 50 Hz; configuration-dependent
Vision
- registration
- CCD camera positioning available
Work area
- cutting area (mm)
- BK2-1311: 1300 × 1100; BK2-1713: 1700 × 1300; BK2-2011: 2000 × 1100; BK2-2516: 2500 × 1600
- available table lengths (mm)
- 800–5000; custom dimensions to be confirmed
- working widths (mm)
- 800–5000; custom dimensions to be confirmed
Workflow
- material handling
- Conveyor feeding and collection; configuration to be confirmed
- integrated workflow
- IECHO CutterServer; automatic nesting
Cutting system installation
- Operating relative humidity (% RH)
- 20–80
- working temperature (°C)
- 0–40
- Vacuum pump power (kW)
- 5.5 / 7.5 / 9 / 11; configuration-dependent
Configurations
Price depends on the configuration
- Table size
Choose one
Tell us your volumes and materials and we will propose a configuration.
Get a priceDocuments
